Graco 244201 Pump Repair Kit

The Graco 244201 Pump Repair Kit is an OEM replacement designed for high-performance Mark V and GMax 5900 sprayers. It restores full pump efficiency and pressure consistency.

Part Number: 244201
Type: Pump Repair Kit / Fluid Section
Compatible Units: Mark V, GMax 5900
Function: Replaces worn fluid section components
Quality: Genuine OEM Graco part

Retail Price: $1360

You save: $217.6 (16.00%)

Our Price: $1142.4

Based on 0 reviews

Description

Overview & Key Details

Compatible Machines

Graco Mark V (e.g., 245049, 245046, 245044)
Graco GMax 5900 (e.g., 233717, 233716)

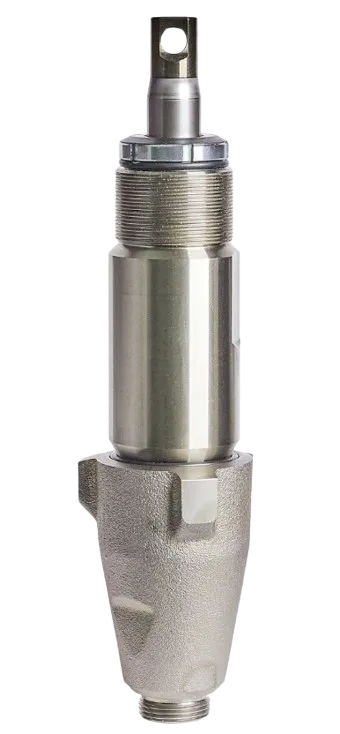

Graco 244201 Pump Repair Kit (Pump / Fluid Section)

The Graco 244201 Pump Repair Kit (often referred to as the pump fluid section) is an OEM assembly designed for high-output Mark V and GMax 5900 sprayers. It restores performance by renewing the fluid end (packings, internal valving & wear components) of the displacement pump.

Specifications

Manufacturer / Part No.	Graco 244201
Category	Pump Repair Kit / Fluid Section (Displacement Pump Assembly)
Intended Units	Mark V, GMax 5900 (see list above)
OEM / Aftermarket	OEM Genuine Graco
Related Pump Family	Same service family references include 244224, 245904 (check your manual)

Key Features & Benefits

Restores pressure & spray quality by renewing the fluid section.
OEM fit for quicker installation and reliable sealing.
Reduces downtime versus piecemeal seal/packing replacements.
Built for high-duty use on Mark V / GMax 5900 applications.

Compatibility Notes

Match the pump number (244201) to your unit’s parts manual before purchase.
Mark V and GMax 5900 have multiple revisions; verify series and manifold configuration.
If your unit uses a different pump (e.g., 244224 / 245904), order the corresponding kit.

What’s Included (General)

Complete OEM pump/fluid section assembly for the 244201 displacement pump. Contents typically include the packed cylinder, piston/rod, internal check components (balls/seats), and related wear parts as assembled by Graco. Exact contents may vary by series—refer to your service manual.

Frequently Asked Questions

Many listings refer to 244201 as a pump repair kit and/or fluid section. Functionally, it’s the assembled displacement pump (fluid end) that renews the pumping components. Always review your manual for the exact assembly description for your unit/series.

Check your sprayer’s model, serial, and the pump number in the parts manual. If your pump is specified as 244201 for your Mark V or GMax 5900 configuration, this assembly is the correct fit.

Basic hand tools and adherence to the Graco service manual are typically sufficient. Depressurize the system, flush safely, and follow torque/sequence guidance. If unsure, consult a qualified service technician.

Common signs include loss of pressure, pulsing/surging, leaks at the throat or lower, poor atomization, and frequent packings wear. After verifying hose/gun/tip and filters, the fluid section is often the root cause on high-hour units.

OEM Graco parts carry the manufacturer’s standard warranty against defects. Store policies on returns may require the assembly to be unused and in original packaging. Check the specific policy on this site before purchasing.
