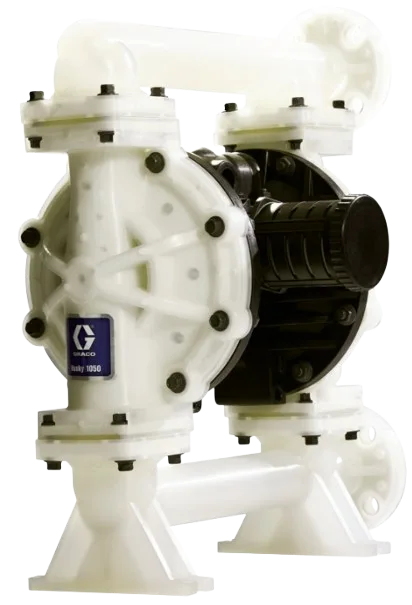

Graco 649201 Pump1050C-Pc01Ac2Ppptptpt
The Graco 649201 Pump 1050C-PC01AC2PPPTPTPT is an air-operated double diaphragm pump designed for reliable industrial fluid transfer. It is ideal for chemical, coating, and process applications requiring consistent flow and chemical resistance.
- Husky 1050 series air-operated diaphragm pump
- Maximum flow rate up to 50 GPM (189 LPM)
- Conductive polypropylene fluid sections
- PTFE diaphragms and check balls for chemical resistance
- 1 inch inlet and outlet connections
- Stall-free, low-pulsation air valve design
Industrial Diaphragm Pump Overview
The Graco 649201 Pump 1050C-PC01AC2PPPTPTPT is a high-performance air-operated double diaphragm pump from the trusted Husky 1050 series. It is engineered for demanding industrial fluid-handling applications where chemical resistance, consistent flow, and reliable pneumatic operation are required.
Compatible Machines & Systems
This pump is not a stand-alone machine. It is designed to be installed as a component within industrial fluid-handling systems. Below are the common systems where this pump is used.
- Chemical transfer and dosing systems
- Paint, coating, and ink circulation systems
- Adhesive and sealant dispensing units
- Wastewater and sludge transfer setups
- Industrial fluid circulation skids
- Process equipment requiring a Husky 1050 series diaphragm pump
Key Features & Benefits
- Air-operated double diaphragm design for safe and efficient pumping
- Conductive polypropylene fluid sections for chemical compatibility
- PTFE diaphragms and check balls for enhanced chemical resistance
- Stall-free air valve ensures smooth, low-pulsation operation
- Suitable for handling corrosive, viscous, and shear-sensitive fluids
- Designed for continuous industrial duty cycles
Technical Specifications
| Pump Type | Air-Operated Double Diaphragm |
|---|---|
| Series | Husky 1050 |
| Maximum Flow Rate | Up to 50 GPM (189 LPM) |
| Maximum Fluid Pressure | 125 PSI (8.6 bar) |
| Inlet / Outlet Size | 1 inch |
| Wetted Materials | Conductive Polypropylene, PTFE |
| Typical Applications | Chemicals, coatings, adhesives, wastewater |
