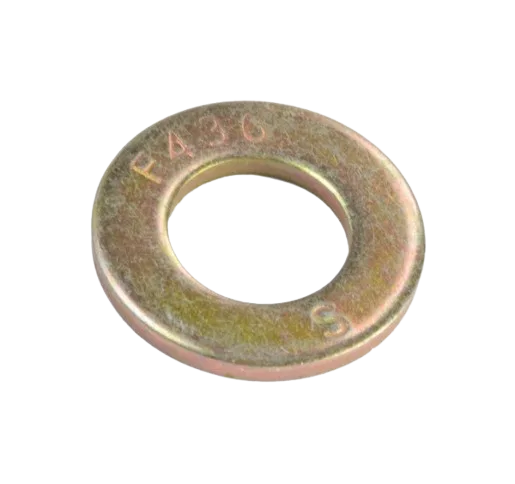

Graco 113962 SAE Hardened Washer

The Graco 113962 SAE Hardened Washer provides reliable load distribution and maintains clamping force in high-stress assemblies. Key benefits include:

  • OEM **hardened washer** for structural integrity
  • Prevents bolt deformation and maintains alignment
  • Used in caster, frame, pivot, and axle assemblies
  • Durable steel construction for long-lasting performance

$6.5
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco 113962 – SAE Hardened Washer Overview

Compatible Machines

The **113962 SAE Hardened Washer** is designed to provide secure load distribution in structural assemblies. Verified compatible machines include:

  • Graco RoadLazer Line‑Striping Systems (308611 and related models)
  • Graco LineLazer IV 200HS (pivot and caster assemblies)
  • Graco ProMelt and ThermoLazer Systems (frame and fork assemblies)
  • Graco GrindLazer 270/390 (axle and wheel hubs)

Key Features

  • OEM **SAE hardened washer** for structural assemblies
  • Distributes load evenly to prevent fastener deformation
  • Maintains clamping force and alignment over time
  • Durable construction for high-load applications

Technical Specifications

Part Number 113962
Type SAE Hardened Washer
Material Hardened Steel
Application Structural load distribution in caster, frame, and pivot assemblies

Applications

The 113962 Washer is ideal for:

  • Distributing load for bolts in RoadLazer caster and pivot assemblies
  • Maintaining proper clamping force in LineLazer IV 200HS assemblies
  • Frame and fork load distribution in ProMelt and ThermoLazer machines
  • Axle and wheel hub assemblies in GrindLazer systems

Installation Tips

  • Use correct washer size and hardness for intended fasteners
  • Ensure flat seating against the fastener head and mating surface
  • Inspect washers for wear and replace with bolts if necessary
  • Always use OEM parts for consistent performance and reliability

Frequently Asked Questions

The 113962 SAE Hardened Washer distributes load from bolts, prevents deformation, and maintains clamping force in structural assemblies.

The 113962 SAE Hardened Washer is intended for structural assemblies such as caster, frame, pivot, and axle hubs. Always check your machine’s parts diagram before use.

Hardened washers resist deformation under load, maintaining clamping force and alignment over time, which is critical for structural integrity.
