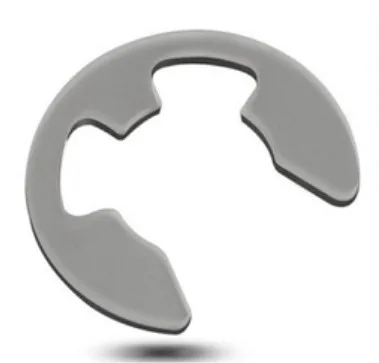

Graco 113983 External Retaining Ring

The Graco 113983 External Retaining Ring is a durable OEM snap ring designed to secure pivot pins and shafts in bead box and dispenser assemblies.

Part Number: 113983
Used in ThermoLazer 200 / 200TC and Double Bead Box Assemblies
Prevents axial movement and ensures reliable operation
High-quality metal construction for long-term durability

$9.47

Based on 0 reviews

Description

Graco 113983 External Retaining Ring – Overview

The Graco 113983 External Retaining Ring is a genuine OEM snap ring designed to securely retain pivot pins and shafts in bead box and dispenser assemblies. Its durable metal construction ensures reliable retention in high-vibration and rotating applications.

Compatible Machines

Machine / Assembly	Usage Context
Graco ThermoLazer 200 / 200TC	Used in Dual Bead Box Kit (17B587 for 8" box, 17B361 for 12" box) to retain pivot pins in bead dispenser assemblies. ([graco.com](https://www.graco.com/content/dam/graco/tech_documents/manuals/334/334146/historic/334146EN-A.pdf?utm_source=chatgpt.com))
Double Bead Box / Bead Dispenser Assembly	Secures pulley and engagement wheel shafts, ensuring proper bead delivery and assembly integrity. ([graco.com](https://www.graco.com/content/dam/graco/tech_documents/manuals/3A0/3A0004/3A0004EN-D.pdf?utm_source=chatgpt.com))

Key Features & Specifications

Part Number: 113983, genuine Graco OEM external retaining ring
Metal snap ring designed for pivot pins and rotating shafts
Durable, high-reliability design for bead box and dispenser assemblies
Prevents axial movement in high-vibration applications
Easy installation with snap-ring pliers

Installation & Maintenance

Tips for safe and proper use of the 113983 retaining ring:

Ensure the groove for the ring is clean and free of debris
Use snap-ring pliers to safely install or remove the ring
Inspect regularly for deformation or wear, especially on rotating shafts
Replace immediately if ring shows signs of damage to maintain assembly integrity

Frequently Asked Questions

The 113983 External Retaining Ring holds pivot pins and shafts securely in bead box and dispenser assemblies, preventing axial movement and ensuring proper operation. ([innoflo.com](https://innoflo.com/fr/products/graco-113983-ring-retaining-ext?srsltid=AfmBOop428d3poPcI-Z7ohcKbmQdhqp66GkPP9SjmHoKitAl4PP02O7i&utm_source=chatgpt.com))

It is used in Graco ThermoLazer 200 / 200TC and in Double Bead Box / Bead Dispenser Assemblies to secure pivot pins and shafts. ([graco.com](https://www.graco.com/content/dam/graco/tech_documents/manuals/334/334146/historic/334146EN-A.pdf?utm_source=chatgpt.com))

Using a generic snap ring may compromise fit or retention force. OEM Graco 113983 ensures proper groove fit and reliable retention of pivot pins and shafts.

113983 is available from authorized Graco parts distributors and industrial equipment suppliers. ([smallenginesprodealer.com](https://www.smallenginesprodealer.com/part-graco-113983/?utm_source=chatgpt.com))

Why Choose OEM Retaining Rings?

Using the genuine Graco 113983 External Retaining Ring guarantees proper fit, optimal retention force, and reliable performance in bead box and dispenser assemblies. It prevents pin or shaft movement that could disrupt machine operation.
