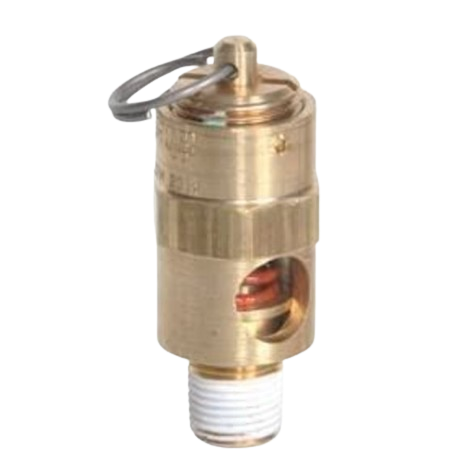

Graco 114003 Safety Valve Product Information
Compatible Machines
The Graco 114003 Safety Valve is an OEM air-relief component used in several Graco pneumatic pump systems and integrated air-control assemblies. Below are confirmed compatible systems based on official Graco documentation.
- Graco 8900 Proportioner (Air Motor Safety Relief Valve)
- SaniForce Air-Control Modules (per 3A5800 series documentation)
- Integrated Air Control Modules including models: 25M879, 25E030, 25E650, 25E651
- Other Graco pneumatic pump systems using 130 PSI air motor relief assemblies
Product Overview
The Graco 114003 Safety Valve is a pressure-relief valve designed to protect air-driven systems by releasing excess air pressure when levels exceed its rated limit. This prevents damage to air motors, regulators, and connected components within Graco pump and proportioner systems.
- 130 PSI relief rating for air-motor over-pressure protection
- OEM-precision valve for consistent safety performance
- Used in air control modules and pneumatic pump systems
- Critical component for maintaining safe operating pressure
Technical Specifications
| Part Number | 114003 |
| Component Type | Air Motor Safety Relief Valve |
| Relief Pressure Rating | 130 PSI |
| Primary Application | Air-driven pump systems & integrated air-control modules |
| OEM Manufacturer | Graco |
Frequently Asked Questions
The valve opens automatically when air pressure exceeds its set point (130 PSI), preventing over-pressurization and protecting the air motor and control system from damage.
No. The 114003 is an air system safety valve. It is not designed for relieving paint or fluid pressure and should only be used on the air-motor side of the system.
It is strongly recommended to use the OEM Graco valve to ensure the correct pressure relief rating and safe operation. Incorrect valves may not trigger reliably and can cause equipment damage or safety hazards.
The 114003 valve is typically installed within the air control module or on the air motor inlet side of Graco proportional and pump systems. Placement may vary depending on model design.
If you're unsure whether this valve fits your system, verify through your machine’s parts manual or contact Graco technical support for confirmation.
