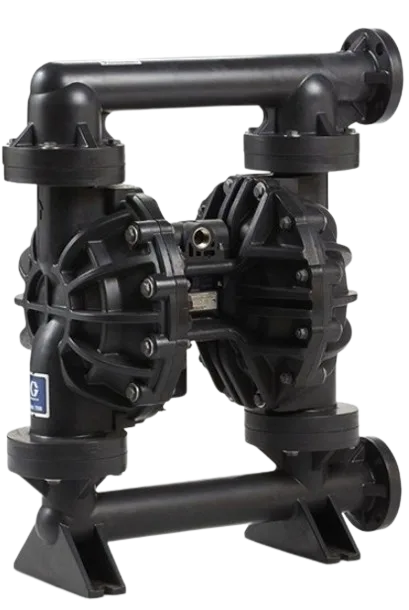

Graco 653546 2200F F2 PVDF Diaphragm Pump
The Graco 653546 Husky 2200 PVDF Diaphragm Pump is a durable air-operated pump designed for high-volume chemical and industrial fluid transfer. Its PVDF construction provides excellent resistance to corrosive liquids.
- Model: Graco 653546
- Series: Husky 2200
- Pump Type: Air-Operated Double Diaphragm (AODD)
- Fluid Section: PVDF (Kynar)
- Diaphragms: PTFE / EPDM
- Port Size: 2 in (50.8 mm)
- Max Flow Rate: Up to 200 GPM (757 L/min)
- Max Pressure: 125 psi (8.6 bar)
- Power Source: Compressed Air
Compatible Machines
The Graco 653546 2200F F2 PVDF Diaphragm Pump is a stand-alone industrial fluid transfer pump. It is commonly installed in the following equipment and systems:
- Chemical transfer systems
- Industrial fluid handling systems
- Water and wastewater treatment equipment
- Bulk fluid supply and transfer stations
- Drum and tote pumping stations
- Chemical dosing and metering skids
- Industrial manufacturing process lines
- Cleaning chemical distribution systems
- Diesel exhaust fluid (DEF) transfer systems
- Tank-to-tank fluid transfer systems
Product Description
The Graco 653546 2200F F2 PVDF Diaphragm Pump is part of the reliable Husky 2200 air-operated double diaphragm (AODD) pump series. This pump is designed to transfer large volumes of liquids efficiently while maintaining excellent durability in demanding industrial environments.
Constructed with a PVDF (Kynar) fluid section, this pump provides outstanding chemical resistance, making it suitable for handling corrosive liquids, industrial chemicals, cleaning agents, and water-based fluids. The air-operated design eliminates the need for electric motors, making it safe for hazardous or explosive environments.
The Husky 2200 series is engineered to provide improved air efficiency, smooth fluid flow, and long service life. Its robust design reduces maintenance requirements while delivering reliable performance for continuous industrial fluid transfer applications.
Key Features
| Feature | Details |
|---|---|
| Pump Type | Air-Operated Double Diaphragm (AODD) |
| Series | Husky 2200 |
| Model Number | Graco 653546 |
| Fluid Section Material | PVDF (Kynar) |
| Diaphragm Material | PTFE / EPDM |
| Power Source | Compressed Air |
| Port Size | 2 inch (50.8 mm) |
| Maximum Flow Rate | Up to 200 GPM (757 L/min) |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Maximum Solid Size | 0.375 in (9.5 mm) |
| Maximum Temperature | 180°F (82°C) |
Applications
The Graco 653546 Husky 2200 PVDF Diaphragm Pump is widely used in industrial environments where chemical resistance and high fluid transfer capacity are required. Its air-powered operation ensures safe and reliable performance in facilities where electrical equipment may not be suitable.
- Chemical processing and transfer
- Industrial cleaning chemical handling
- Water treatment facilities
- Manufacturing process fluid movement
- Bulk liquid transfer from tanks, drums, and totes
