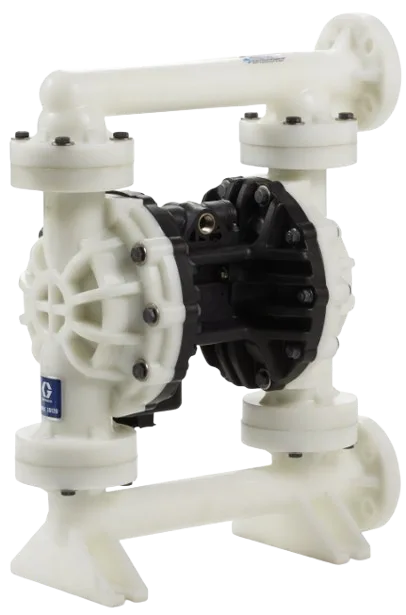

Graco 654509 Husky 15120P Pneumatic Diaphragm Pump PP/FKM
The Graco 654509 Husky 15120P Pneumatic Diaphragm Pump PP/FKM is a high-capacity air-operated pump designed for reliable industrial fluid transfer with excellent chemical resistance.
- Part Number: 654509
- Pump Series: Husky 15120
- Pump Type: Air-Operated Double Diaphragm (AODD)
- Fluid Section Material: Polypropylene (PP)
- Elastomers: FKM (Viton)
- Port Size: 1-1/2 in
- Maximum Flow Rate: Up to 120 GPM
- Maximum Air Pressure: 125 psi
- Application: Industrial fluid and chemical transfer
Compatible Machines
The Graco 654509 Husky 15120P Pneumatic Diaphragm Pump PP/FKM is a standalone industrial pump designed for integration into fluid transfer and chemical processing systems. It is not limited to one specific machine but is commonly installed in the following equipment and systems:
- Chemical transfer and dosing systems
- Industrial fluid handling and circulation systems
- Water and wastewater treatment equipment
- Bulk liquid transfer stations
- Drum and tank transfer pumping systems
- Industrial cleaning and washing systems
- Mining and slurry transfer equipment
- Agricultural chemical handling systems
- Manufacturing fluid processing lines
Product Overview
The Graco 654509 Husky 15120P Pneumatic Diaphragm Pump PP/FKM is an air-operated double diaphragm pump designed for reliable industrial fluid transfer. Powered by compressed air, this pump eliminates the need for electricity, making it safe for hazardous environments and suitable for transferring corrosive or sensitive fluids.
Built with a polypropylene (PP) fluid section and FKM (Viton) elastomers, the pump offers excellent chemical resistance and durability. The Husky 15120 series is known for high flow capacity, efficient air usage, and long diaphragm life, making it ideal for demanding industrial applications.
Key Features
- Air-operated double diaphragm design for safe and reliable operation
- Polypropylene construction for strong chemical resistance
- FKM elastomers for improved durability and fluid compatibility
- Efficient air valve design for reduced air consumption
- High flow capability suitable for bulk fluid transfer
- Stall-free operation with consistent performance
- Suitable for handling corrosive and industrial fluids
Technical Specifications
| Part Number | 654509 |
|---|---|
| Pump Series | Husky 15120 |
| Pump Type | Pneumatic Air-Operated Double Diaphragm Pump |
| Fluid Section Material | Polypropylene (PP) |
| Elastomer Material | FKM (Viton) |
| Port Size | 1-1/2 inch |
| Maximum Flow Rate | Up to 120 GPM (454 L/min) |
| Maximum Air Pressure | 125 psi |
| Maximum Fluid Pressure | 125 psi |
| Maximum Solid Size | 0.25 inch (6.3 mm) |
| Maximum Temperature | 150°F (66°C) |
Typical Applications
The Graco 654509 Husky 15120P Pneumatic Diaphragm Pump PP/FKM is commonly used in industries that require dependable fluid transfer systems. Its corrosion-resistant construction allows it to handle a wide range of liquids including chemicals, cleaning solutions, water-based fluids, and industrial process liquids.
- Chemical processing
- Water treatment plants
- Industrial manufacturing facilities
- Mining and mineral processing
- Food and beverage fluid transfer (non-contact systems)
- Automotive and equipment maintenance operations
