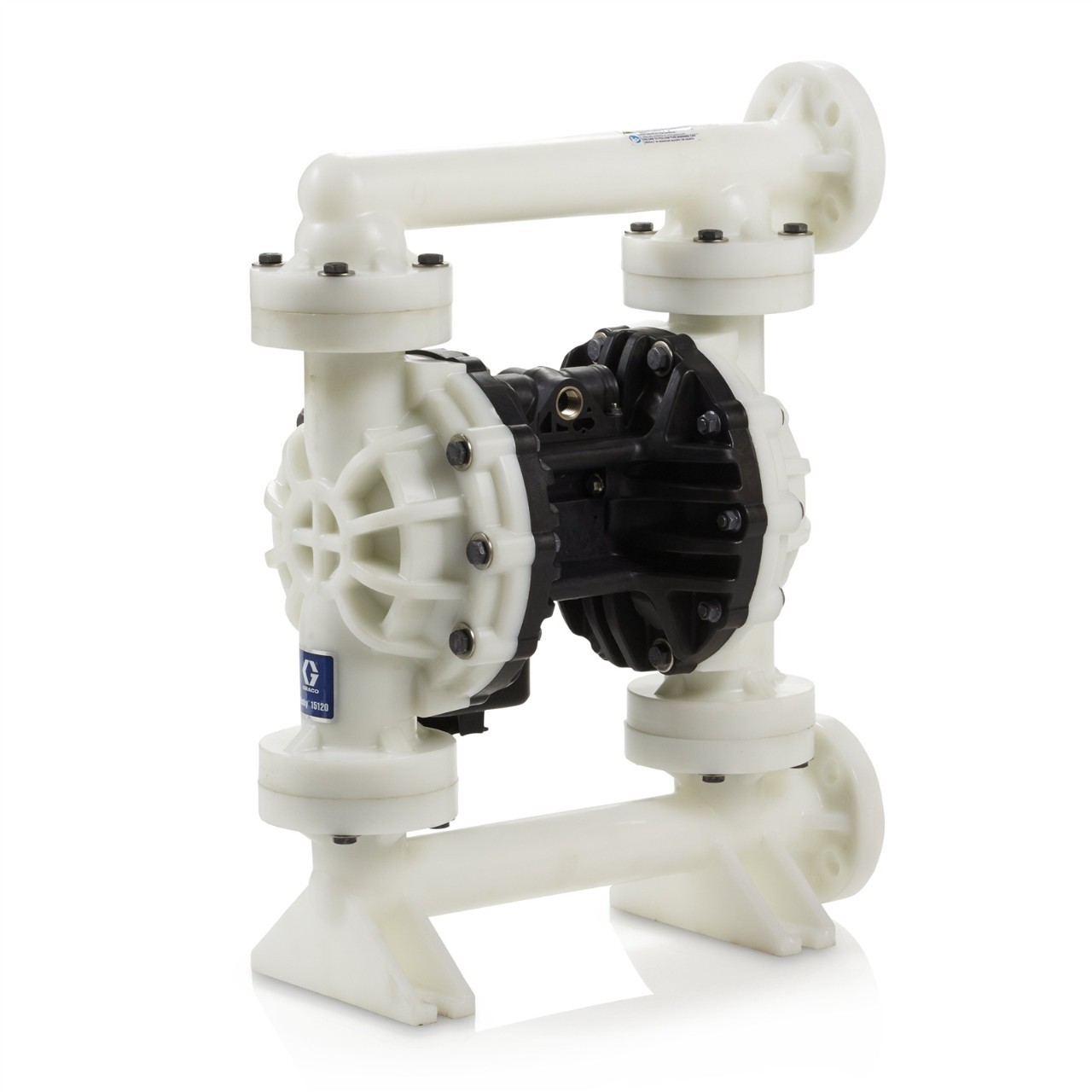

The Graco 654535 Pump 15120P P2 PV/FK/FK/PT is a durable Husky 15120 air-operated double diaphragm pump designed for reliable industrial fluid transfer and chemical handling.
The Graco 654535 Pump 15120P P2 PV/FK/FK/PT is a Husky 15120 air-operated double diaphragm pump designed primarily as a stand-alone fluid transfer pump. It is not limited to a single sprayer or machine but is commonly integrated into industrial systems that require reliable fluid movement, chemical resistance, and consistent pressure.
It can be installed in the following equipment and systems:
The Graco 654535 Pump 15120P P2 PV/FK/FK/PT belongs to the Husky 15120 series of air-operated diaphragm pumps designed for demanding industrial environments. These pumps are powered by compressed air and are engineered to handle a wide range of fluids including chemicals, solvents, viscous liquids, and abrasive materials.
The polypropylene body provides strong chemical resistance while the PVDF seats and fluoroelastomer components help ensure long service life when transferring aggressive or corrosive fluids. The pump’s stall-free air valve and efficient diaphragm design support smooth operation and reduced maintenance requirements.
| Specification | Details |
|---|---|
| Product Number | Graco 654535 |
| Pump Series | Husky 15120 |
| Pump Type | Air-Operated Double Diaphragm (AODD) |
| Body Material | Polypropylene |
| Seat Material | PVDF |
| Ball Material | Fluoroelastomer (FKM) |
| Diaphragm Material | Fluoroelastomer (FKM) |
| Port Size | 1-1/2 inch flange |
| Maximum Flow Rate | Up to 120 GPM (454 L/min) |
| Maximum Working Pressure | 125 psi (8.6 bar) |
| Operation | Compressed air powered |
