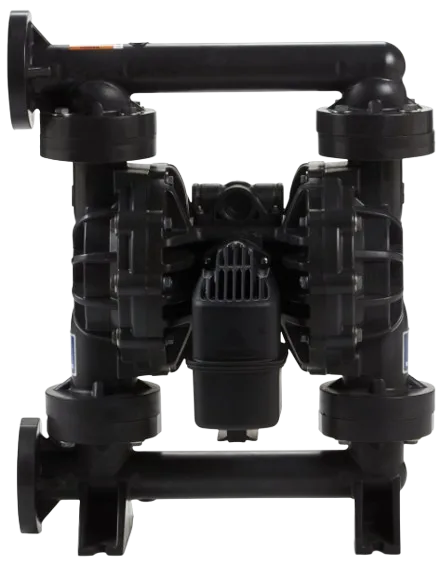

Graco 654546 Husky 15120F PVDF Diaphragm Pump
The Graco 654546 Husky 15120F PVDF Diaphragm Pump is a high-capacity air-operated pump designed for reliable transfer of corrosive chemicals and industrial fluids in demanding environments.
- Model: Husky 15120F
- Part Number: 654546
- Pump Type: Air-Operated Double Diaphragm (AODD)
- Fluid Section Material: PVDF (Kynar)
- Diaphragm Material: PTFE
- Max Flow Rate: Up to 120 GPM (454 L/min)
- Max Working Pressure: 125 psi (8.6 bar)
- Port Size: 1½ inch inlet and outlet
- Applications: Chemical transfer, coatings, solvents, wastewater
Compatible Machines and Systems
The Graco 654546 Husky 15120F PVDF Diaphragm Pump is typically installed as part of fluid transfer or supply systems rather than a single dedicated machine. It is commonly integrated into the following equipment and industrial systems:
- Chemical transfer and dosing systems
- Industrial paint circulation and coating supply systems
- Ink and dye transfer equipment
- Water and wastewater treatment systems
- Sludge and slurry transfer systems
- Industrial chemical processing machines
- Solvent and detergent transfer stations
- Bulk fluid distribution systems
- Lubricant and cutting oil transfer equipment
- Industrial filtration and fluid handling skids
Overview of the Graco 654546 Husky 15120F PVDF Diaphragm Pump
The Graco 654546 Husky 15120F PVDF Diaphragm Pump is a high-performance air-operated double diaphragm (AODD) pump designed for transferring chemicals, corrosive fluids, and industrial liquids. Powered by compressed air, this pump eliminates the need for electrical motors, making it suitable for hazardous or demanding industrial environments.
Built with a durable PVDF (Kynar) fluid section and PTFE diaphragms, this pump provides excellent resistance to aggressive chemicals while maintaining reliable performance in continuous industrial operations. The Husky 15120 series is known for high flow capability, improved efficiency, and reduced maintenance requirements.
Key Features
| Feature | Details |
|---|---|
| Pump Type | Air-Operated Double Diaphragm Pump |
| Model | Husky 15120F |
| Part Number | 654546 |
| Maximum Flow Rate | Up to approximately 120 GPM (454 L/min) |
| Maximum Fluid Pressure | 125 psi (8.6 bar) |
| Fluid Section Material | PVDF (Polyvinylidene Fluoride) |
| Diaphragm Material | PTFE / PTFE |
| Port Size | 1½ inch fluid inlet and outlet |
| Operation | Pneumatic air-powered system |
Applications
The Graco 654546 Husky 15120F PVDF Pump is designed for demanding industrial environments where reliability and chemical resistance are critical. Its air-operated design allows it to safely handle hazardous or corrosive fluids while maintaining consistent performance.
- Chemical transfer and handling
- Industrial coating and paint circulation
- Ink and dye transfer operations
- Wastewater and sludge pumping
- Solvent and cleaning chemical transfer
- Bulk fluid supply and distribution
Design Advantages
- Stall-free air valve design for reliable operation
- Energy-efficient air motor reduces air consumption
- Chemical-resistant PVDF construction for aggressive fluids
- PTFE diaphragms designed for durability and compatibility
- Leak-resistant fluid section improves long-term reliability
- Easy maintenance with accessible internal components
