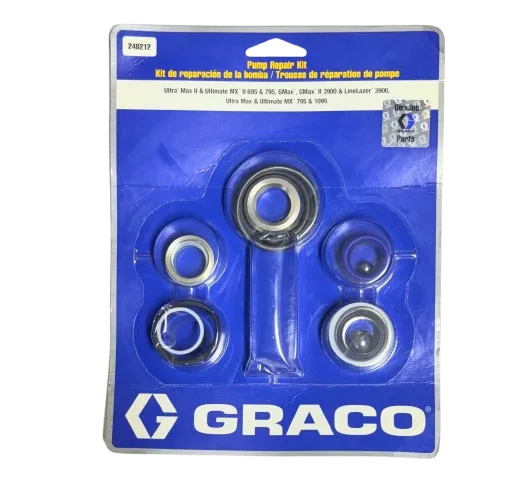

Graco 248212 Pump Packing Repair Kit

The Graco 248212 Pump Packing Repair Kit restores pump performance and prevents leakage in professional airless sprayers. Ideal for maintenance of high-output contractor models.

Part Number: 248212
Fits: Ultra Max II 695/795, GMAX 3900, GMAX II 3900, LineLazer 3900
Includes: Piston & throat packings, O-rings, glands
Purpose: Rebuild pump seal system for consistent spray pressure

Retail Price: $131.5

You save: $36.75 (27.95%)

Our Price: $94.75

Based on 0 reviews

Description

Quick Overview & Compatibility for Graco 248212

Compatible Machines

Ultra Max II 695
Ultra Max II 795
Ultimate MX II 695
Ultimate MX II 795
GMAX 3900
GMAX II 3900
LineLazer 3900

What is the Graco 248212 Pump Packing Repair Kit?

The Graco 248212 is a genuine pump packing repair kit designed to restore sealing performance in compatible Graco airless sprayers. It replaces worn piston packings, throat packings, and related O-rings/glands to reduce leakage, recover pressure, and extend pump life.

Key Details

Part Number	248212
Category	Pump Packing Repair Kit (piston & throat sealing components)
Fits	See Compatible Machines list above.
Typical Symptoms Addressed	Leakage at throat/wet cup, loss of pressure, inconsistent spray pattern, frequent priming issues.
What’s Included*	Piston & throat packings, select O-rings, glands, and related small parts. *Exact count/style may vary by production run.
Why Genuine?	Correct materials & tolerances for factory seal preload, durability, and finish quality.

Key Benefits

Restores pump sealing for consistent pressure and pattern quality.
Reduces downtime and prevents premature component wear.
Factory-spec materials for long service life.
Cost-effective alternative to complete pump replacement.

Installation & Maintenance Tips

Clean and inspect the rod and cylinder surfaces; replace damaged parts before installing new packings.
Lightly lubricate packings as specified in your sprayer’s manual; do not over-tighten the packing nut.
Fill the wet cup to the indicated line and check it regularly during use.
After rebuild, prime with clean fluid and check for leaks at low pressure before full operation.
Always verify compatibility using the model’s parts manual and serial range.

Frequently Asked Questions

Signs include leakage around the throat/wet cup, pressure drop, pulsation, difficult priming, or a rough spray pattern. Inspect the rod for scoring; damaged rods will prematurely wear new packings.

Yes—those models are covered by this kit. For units outside this list, confirm by checking your pump’s parts breakdown and serial range.

Typically piston and throat packings, select O-rings, glands, and small hardware needed to reseal the pump section. Exact contents can vary slightly; refer to the insert that ships with the kit.

No specialty tools are usually required beyond standard hand tools. Follow the sprayer’s service manual for torque specs and packing nut adjustment. A clean bench and proper lube are essential.

Prime with compatible solvent or material, run at low pressure to verify sealing, then bring pressure up gradually. Keep the wet cup filled and re-check the packing nut after initial runtime.
