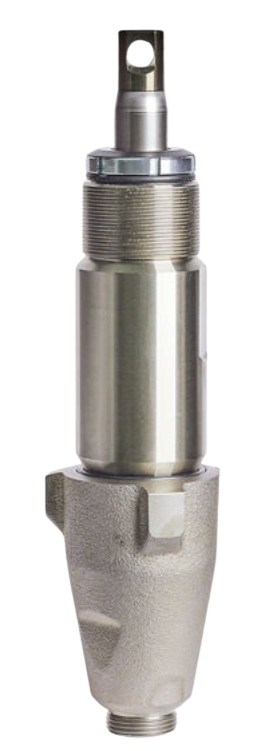

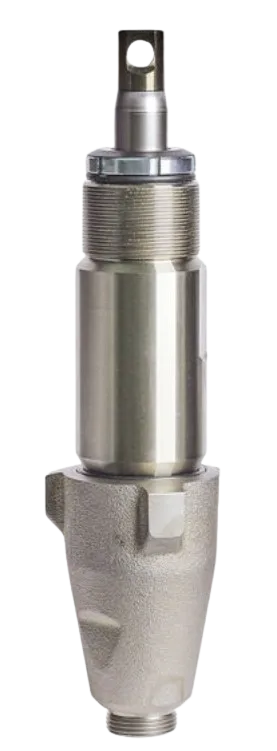

Graco 248971 Pump Replacement For GH & EH 200

The Graco 248971 Pump Replacement is a genuine OEM fluid section assembly designed for top performance and durability on GH 200 and EH 200 sprayers.

Fits: GH 200 (Series A), EH 200 (Series A)
Type: Complete fluid-section pump
Purpose: Restores pressure and flow on worn sprayers
Max Pressure: ≈ 3,300 psi / 250 bar
OEM Quality: Direct-fit replacement for long service life

List Price: $1620

You save: $259.2 (16.00%)

Sale Price: $1360.8

Based on 0 reviews

Description

Overview: Graco 248971 Pump Replacement for GH 200 & EH 200

Compatible Machines

Graco GH 200 (Series A, Convertible variants)
Graco EH 200 (Series A, Convertible electric/hydraulic)
Tip: Verify your sprayer’s series and model tag before ordering.

What is it?

The Graco 248971 Pump Replacement is an OEM fluid-section (displacement) pump assembly designed to restore the pumping element of specific GH 200 and EH 200 sprayers. It comes as a complete module (cylinder, packings, piston/seals) for quick, reliable service versus piecemeal repair.

Key Details

Part Number	248971
Type	OEM Fluid Section / Displacement Pump Assembly
Intended Platforms	GH 200 (Series A), EH 200 (Series A)
Typical Use	Restores prime/spray performance, fixes low pressure/flow due to worn packings or scored cylinder.
Install Notes	Confirm series, relieve pressure, follow Graco torque specs, and flush/prime after installation.

Why choose the OEM pump?

Factory fit & performance for GH/EH 200 Series A units.
Complete assembly reduces downtime versus rebuilding individual components.
Restores pressure & flow for consistent atomization and finish quality.

Frequently Asked Questions

No. The 248971 fluid section is for GH 200 and EH 200 (Series A). GH 230/GH 300 use different pump part numbers. Always confirm the model/series on your data plate.

Difficulty priming, pressure loss, pulsing/surging, fluid bypass, or visible scoring/wear on piston/cylinder are common signs the fluid section needs replacement.

Standard hand tools typically suffice. Follow Graco service steps: depressurize, disconnect, remove old fluid section, install the 248971, torque to spec, then flush & prime. Use compatible lubricant on packings where specified.

In some cases a packing kit can restore performance, but if the cylinder or piston is scored, a complete fluid-section replacement like 248971 is the reliable fix.

After installing, flush with a compatible solvent, then prime and set pressure gradually while checking for leaks. Start with a short spray test to confirm steady pressure and pattern.
