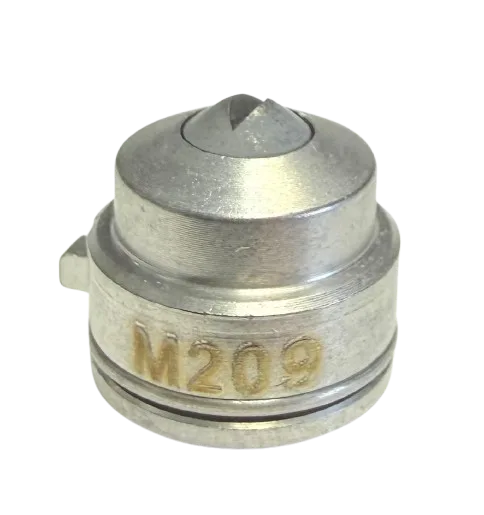

Graco AAM209 Spray Tip

The Graco AAM209 Fine Finish Tip delivers precise, narrow fan atomization for detailed low-to-medium pressure finishing and trim work.

  • Fits: Graco G15 & G40 Air-Assist Guns
  • Orifice: 0.009 in (0.229 mm)
  • Fan Width: 4–6 in @ 12 in distance
  • Best For: Detailed finishing on lacquers, stains, and thin coatings
  • Design: Air-assisted fine finish for precision work

Retail Price: $149.5
You save: $5.97 (3.99%)
Our Price: $143.53
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Graco AAM209 Fine Finish Tip — Compatibility & Technical Details

The Graco AAM209 Fine Finish Tip is a precision flat tip designed for very fine atomization and narrow fan patterns on low‑to‑medium pressure applications, ideal for detailed surface work. ([turn0search0](#))

Compatible Machines

  • Graco G15 Air‑Assist Spray Guns – Manual guns that accept AAM fine finish tips.
  • Graco G40 Air‑Assist Spray Guns – Manual and automatic air‑assist models compatible with AAM series tips. ([turn0search0](#))

Technical Specifications

Part Number AAM209
Orifice Size 0.009 in (0.229 mm)
Fan Width 4–6 in (100–150 mm) @ 12 in distance
Design Precision Fine Finish Air‑Assist Tip
Best For Detailed finishing on lacquers, stains, and thin coatings

Key Benefits

  • Precision Atomization: Provides a narrow, controlled fan for fine detail work. ([turn0search0](#))
  • Low Pressure Efficiency: Optimized for low to medium pressure applications with smooth finish quality.
  • Air‑Assist Compatibility: Works with Graco air‑assist guns to reduce overspray and improve control. ([turn0search0](#))
  • Fine Detail Output: Ideal for trim, cabinetry, and small surface finishing tasks.

Frequently Asked Questions

The AAM209 tip features a 0.009 inch (0.229 mm) orifice size and produces a narrow 4–6 inch fan width at 12 inches distance — excellent for precision applications. ([turn0search2](#))

This tip is optimized for thin to medium viscosity coatings. For thicker materials, a larger orifice tip is recommended for proper coverage and flow.

Yes — the AAM209 fits both Graco G15 and G40 air‑assist guns designed to accept AAM series fine finish tips. ([turn0search2](#))
