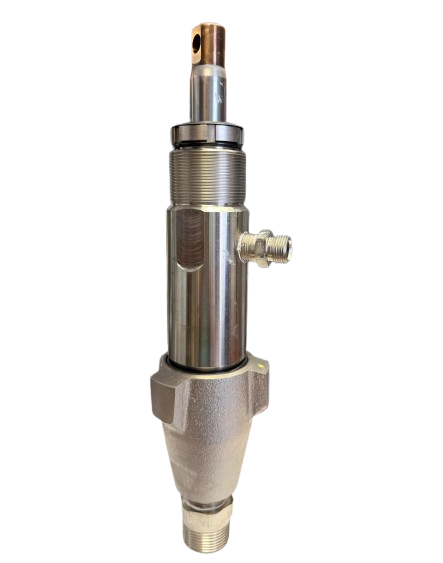

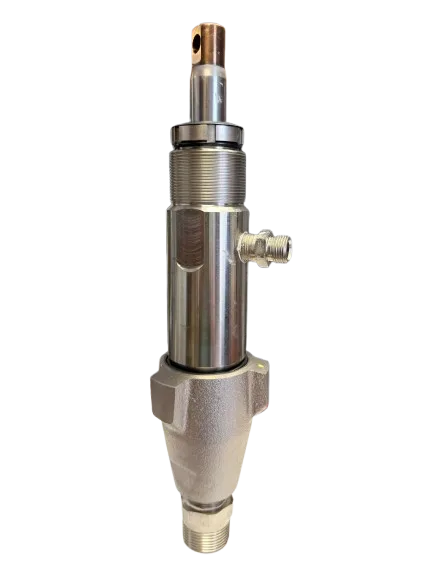

Graco 24B748 Endurance Chromex Piston Pump
$911.40
$1,085.00
Save 16%
In Stock
The Graco 24B748 Endurance Chromex Piston Pump is a durable OEM replacement pump designed for GH 130 and LineLazer 130HS sprayers. Built for long service life and superior pressure performance.
- Fits Graco GH 130 Standard Series
- Compatible with Graco LineLazer 130HS
- Features Chromex rod & V-Max Blue packings
- Includes QuikAccess intake for easy maintenance
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Compatibility
Compatible Machines
- Graco GH 130 Standard Series gas hydraulic airless sprayers
- Graco LineLazer 130HS (uses the 24B748 pump in service documentation)
Always confirm your exact model/serial in the unit manual before ordering.
The Graco 24B748 Endurance Chromex Piston Pump is a genuine OEM replacement “lower” designed for the GH 130 platform. Built with Chromex-coated rod, a hardened stainless steel cylinder, and V-Max Blue packings, it delivers long service life and quick maintenance with the QuikAccess intake design.
Why choose 24B748?
- Durable Chromex rod + hardened cylinder for wear and corrosion resistance
- V-Max Blue packings for extended seal life and consistent pressure
- QuikAccess intake simplifies cleaning and rebuilds, reducing downtime
- OEM fit and performance on the GH 130 Standard Series (and documented on LineLazer 130HS)
At-a-Glance Specifications
| Part Number | 24B748 |
|---|---|
| Series / Type | Endurance / Chromex Replacement Pump (Lower) |
| For Use With | GH 130 Standard Series (documented also on LineLazer 130HS) |
| Notable Features | Chromex rod, Hardened stainless cylinder, V-Max Blue packings, QuikAccess intake |
| OEM / Authenticity | Genuine Graco component for direct fit and factory performance |
What’s included
- Complete Endurance Chromex pump lower assembly (24B748)
- Install per your sprayer’s service manual; reuse model-specific fittings where applicable
Fitment & usage notes
- Match the pump part number in your GH 130 Standard Series or LineLazer 130HS manual
- Replace worn packings/ball seats while the lower is off to maximize uptime
- Flush and relieve pressure before service; verify prime/pressure after installation
Frequently Asked Questions
It’s the OEM lower for GH 130 Standard Series. Graco documentation for LineLazer 130HS also lists 24B748 as the displacement pump. Check your unit’s parts manual to confirm the exact lower before purchase.
The Chromex rod and hardened cylinder resist abrasion and corrosion, while V-Max Blue packings extend seal life—ideal for demanding, high-duty spraying.
Many techs replace the intake ball/seat and packings while the lower is off. Reuse or replace adapters and suction components per your model manual.
It’s a like-for-like OEM replacement Endurance Chromex lower, engineered to restore factory performance and longevity on GH 130 Standard Series machines.
See the Graco product page and the displacement pump manual for models including 24B748, and the LineLazer 130HS repair manual which references this pump.
