Graco 24N012 Pump Packing Kit

The Graco 24N012 Pump Packing Kit is an OEM repair set that restores sealing performance in your sprayer’s fluid section. Ideal for maintenance of TexSpray DutyMax GH 230 DI models.

Part Number: 24N012
Fits: GH 230 DI (24W943, 24W944, 24W945)
Includes: packings, O-rings, glands & seals
Purpose: restores pressure, stops leaks

Retail Price: $267.5

You save: $33.44 (12.50%)

Our Price: $234.06

Based on 0 reviews

Description

Graco 24N012 Pump Packing Kit — Fitment & Details

Compatible Machines

This OEM kit services the fluid section used on the models below.

TexSpray DutyMax GH 230 DI — model variants 24W943, 24W944, 24W945
Units that use the Graco fluid pump 24W999 (as fitted in the GH 230 DI series above)

What is the 24N012 Kit?

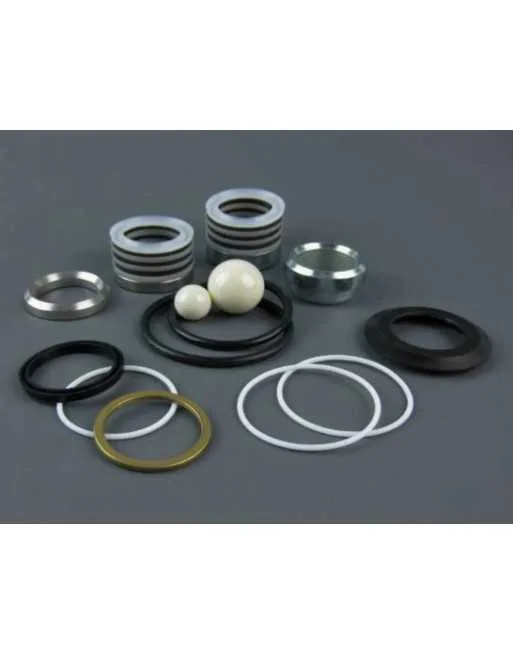

The Graco 24N012 Pump Packing Kit is an OEM repair set for the pump’s fluid section. It refreshes worn packings and sealing elements to restore prime, pressure, and spray consistency.

Includes upper/lower packings, glands, seals, O-rings, wipers, and related wear items
Designed for the fluid pump assembly referenced above (24W999)
Used when you notice leakage from the packings, pressure drop, or poor atomization

Key Specifications

Graco Part #	24N012
Product Type	Pump Packing Repair Kit (fluid section)
Primary Fit	TexSpray DutyMax GH 230 DI — 24W943 / 24W944 / 24W945
Fluid Pump Compatibility	24W999 fluid pump assembly
Category	OEM Graco service/maintenance part

When to Use & Install Notes

Use when packings are leaking, the sprayer won’t hold pressure, or performance has dropped
Inspect rod and cylinder for scoring; severe damage may require additional parts
Lubricate and assemble per Graco service procedure; torque fasteners to spec

Frequently Asked Questions

No. It is intended for DutyMax units that use the compatible fluid section, specifically the GH 230 DI variants 24W943, 24W944, 24W945, and pumps built around the 24W999 fluid pump. Always verify your exact model.

Worn packings cause internal leakage, loss of prime, pressure fluctuations, and poor spray quality. Replacing the packings restores seal integrity and consistent performance.

Basic hand tools typically suffice. Follow Graco’s service manual for safe disassembly, lubrication, correct component orientation, and torque specifications.

No. Packings cannot compensate for damaged sealing surfaces. If the rod or cylinder is scored, consider replacing the affected components or the complete fluid section.

Yes. It is an OEM Graco repair kit engineered for the specified fluid section.
