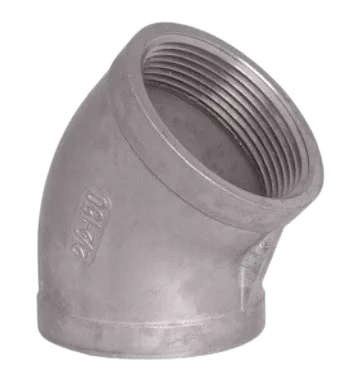

Graco 116756 45 Degree Street Elbow Fitting

Genuine Graco 45-degree street elbow for space-saving moderate-angle fluid connections.

  • Part #: 116756
  • Type: Street Elbow
  • Angle: 45-Degree
  • OEM Part

$23.14
0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%

Compatible Machines

  • Graco 1095 Air Assist Airless
  • Graco 1095 Airless
  • Graco GMAX II 790
  • Graco GMAX II 1095
  • Graco LTS 15
  • Graco LTS 17

Product Overview

This genuine Graco 116756 45-Degree Street Elbow Fitting is a precision fluid connector designed for creating moderate-angle directional changes in compact spaces within your sprayer's fluid system.

Specification Details
Part Number 116756
Part Type 45-Degree Street Elbow
Manufacturer Graco
Configuration Street Elbow (Male/Female)

Key Features

  • Street Elbow Design - Combines male and female threads for compact installation
  • 45-Degree Angle - Provides gentle directional change with minimal flow restriction
  • Space-Efficient - Eliminates need for additional fittings in tight spaces
  • Pressure-Rated - Engineered for reliable performance under sprayer operating conditions

Frequently Asked Questions

A street elbow with its combination of male and female threads creates a more compact connection by eliminating the need for a separate nipple or adapter. This saves space and reduces potential leak points in tight installations.

This 116756 fitting is ideal for manifold connections, pump outlets, and other tight spaces where you need a moderate directional change. The 45-degree angle provides a gentler turn than 90-degree elbows while maintaining compact dimensions.

Apply thread sealant to the male-threaded end only. The female end will receive another component that should be sealed separately. For the street elbow, ensure proper thread engagement on both ends without over-tightening.

Yes, 45-degree elbows typically create less turbulence and lower pressure drop compared to 90-degree elbows. The gentler angle allows for smoother fluid flow, which can be beneficial in maintaining consistent spray pressure and pattern.
