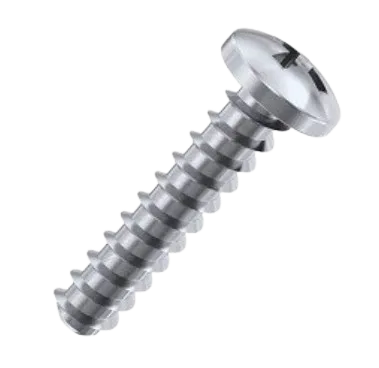

Graco 117317 Pan Head Plastite Screw

Graco 117317 Pan Head Plastite Screw is designed for secure, corrosion-resistant fastening in professional sprayer assemblies. Ideal for repeated use in fluid systems.

Compatible with Graco ProContractor X19
Compatible with Graco Ultra Max II 695
Compatible with Graco Magnum X7
Compatible with Graco Mark V Plus
Made from 17-4 PH stainless steel for durability
Pan head design for optimal torque retention

$3.46

Based on 0 reviews

Description

Graco 117317 Pan Head Plastite Screw Overview

Upgrade your airless sprayer assemblies with the Graco 117317 Pan Head Plastite Screw, engineered for secure fastening, corrosion resistance, and high-performance fluid systems.

Compatible Machines

Graco ProContractor X19
Graco Ultra Max II 695
Graco Magnum X7
Graco Mark V Plus

Key Features

Pan head geometry for increased load-bearing capacity
Abradized Plastite threads for easy self-tapping
Corrosion-resistant 17-4 PH stainless steel
Low-profile design minimizes interference in fluid flow
High torque retention for repeated cycles

Materials & Construction

Made from precipitation-hardened 17-4 PH stainless steel alloy, this screw is precision-machined to tight tolerances, with an Abradized surface for minimal insertion torque and high thread engagement efficiency.

Applications

Ideal for manifold assemblies, agitator housings, fluid control valves, pump heads, diaphragm valve retainers, and filter bracket interfaces in professional coating and spray systems.

Frequently Asked Questions

Recommended installation torque is 12–16 in-lbs to ensure proper clamping and seal compression.

Yes, the 117317 Pan Head Plastite Screw is compatible with both solvent-based and waterborne coatings.

Apply a compatible assembly lubricant during installation and periodically inspect for wear; anti-seize compounds can preserve threads during disassembly.
