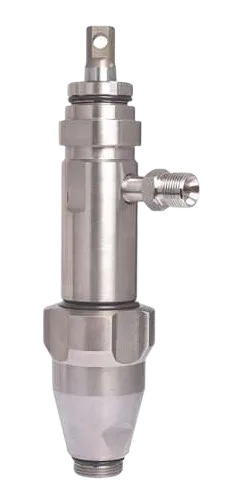

Graco 287513 Displacement Pump
$919.80
$1,095.00
Save 16%
Available to Order
The Graco 287513 Displacement Pump is a complete genuine fluid section designed for heavy-duty Ultra Max II and GMax II airless sprayers, ensuring smooth performance and long life.
- Part Number: 287513
- Compatible With: Ultra Max II 1095, 1595, GMax II 3900, 5900
- Max Pressure: 3300 PSI
- Material: Stainless Steel, Tungsten-Carbide, PTFE
- Application: Professional airless paint spraying
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Essential Replacement Fluid Section for Heavy-Duty Airless Sprayers
Compatible Machines
This Graco 287513 Displacement Pump (complete fluid section) is known to fit the following Graco airless sprayers:
- Ultra Max II 1095
- Ultra Max II 1595
- GMax II 5900
- GMax II 3900
Graco 287513 Displacement Pump
The 287513 Displacement Pump is a genuine Graco complete fluid-section designed for high-output, professional airless paint spraying. It restores prime, pressure, and smooth delivery when your original pump is worn, delivering reliable performance with heavy-duty coatings on job sites.
Key Features
- Complete fluid-section assembly for quick swap and reduced downtime
- Built for high-pressure airless operation and demanding daily use
- Durable stainless steel & tungsten-carbide wetted components for long life
- Compatible with popular Ultra Max II and GMax II frames (see list above)
- Genuine Graco part for fit, finish, and performance
At-a-Glance Specifications
| Part Number | 287513 |
|---|---|
| Category | Complete Displacement Pump / Fluid-Section |
| Typical Max Working Pressure | ≈ 3300 psi (reference typical Graco 1095/1595 class) |
| Wetted Materials | Stainless Steel, Tungsten-Carbide, PTFE, Leather, Nylon, Brass, Fluoroelastomer |
| Use Case | Professional airless spraying of paints, primers, elastomerics, and other compatible coatings |
| What’s Included | Factory-assembled fluid section ready to install (pump body, piston/packings, valves) |
Why Choose the 287513?
- Restores factory performance to Ultra Max II 1095/1595 and GMax II rigs
- Faster turnaround vs. full sprayer replacement; swap, prime, spray
- Backed by Graco engineering, service documentation, and parts support
Frequently Asked Questions
Yes—this is a complete fluid-section. Install it per the Graco procedure, prime, and you’re ready to spray once leaks and pressure are checked.
Check your sprayer’s exact model and series (e.g., Ultra Max II 1095 / 1595, GMax II 5900/3900). If unsure, share your unit’s serial plate information to verify before purchase.
Hard priming, pressure drop, fluttering fan pattern, material bypass leaking, or frequent packings adjustments are common signs the pump/packings are due for replacement.
Basic hand tools and a torque-wrench (recommended) are typically sufficient. Follow Graco torque specs and use thread sealant where specified. Always depressurize and lock out power first.
Keep inlet strainers clean, use correct tip size, flush promptly after use, use pump preservative for storage, and replace packings/valves as needed per Graco maintenance intervals.
