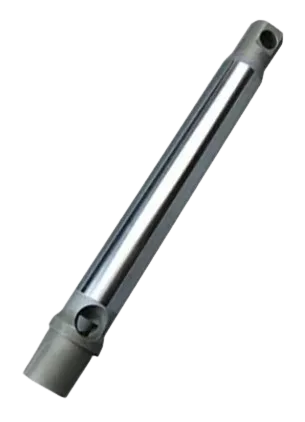

Graco 287816 Pump Rod

The Graco 287816 Pump Rod is a precision OEM piston rod designed for reliable fluid transfer in GH-series sprayers. Ideal for maintaining consistent pressure and performance.

Part Number: 287816
Fits: GH 230, GH 300
Category: Pump / Piston Rod
Use: Replaces worn rod to restore sealing and spray consistency

Retail Price: $1060

You save: $296.8 (28.00%)

Our Price: $763.2

Based on 0 reviews

Description

Graco 287816 Pump Rod — Compatibility & Details

Compatible Machines

Verified fit for the following Graco gas-hydraulic rigs. Always confirm against your machine’s parts manual/serial range.

Graco GH 230
Graco GH 300

What is the Graco 287816 Pump Rod?

The Graco 287816 Pump Rod (also referred to as a piston rod) is a critical internal component of the fluid section that converts drive motion into reciprocating piston movement. Replacing a worn rod restores sealing surface integrity and helps maintain prime, pressure, and spray consistency on compatible GH-series machines.

Key Details

Part Number	287816
Category	Pump / Piston Rod (fluid section component)
Fits	GH 230, GH 300 (verify series/serial range)
Typical Symptoms Indicating Replacement	Loss of prime, pressure fluctuations, premature packing wear, rod surface scoring.
Recommended With	Packing kit, seals, fluid cylinder inspection; replace related wear parts if needed.
Notes	Use genuine Graco parts; follow torque/assembly procedures in your unit’s manual.

Installation Tips

Depressurize and follow lock-out/tag-out procedures before servicing.
Inspect rod and cylinder surfaces; replace worn packings and seals together for best results.
Lubricate per manual during assembly; observe specified torque values.
After installation, pressure-test and check for leaks/steady pressure.

Frequently Asked Questions

Check your sprayer’s model, series, and serial range against the GH-series parts manual. If your unit is a GH 230 or GH 300 in the listed series ranges, the 287816 Pump Rod is the correct rod. When in doubt, match by exploded-view diagram and rod reference number in your manual.

Yes—rod wear often coincides with packing wear. Replacing the rod and installing a fresh packing kit helps restore sealing and extends service life. Inspect the fluid cylinder for scoring before reassembly.

No. The 287816 Pump Rod is listed for GH 230 and GH 300 gas-hydraulic rigs. Electric units (e.g., Ultra/Ultra Max II) use different fluid-section components and rod part numbers.

Follow the GH-series service manual for safe disassembly and reassembly. Use appropriate wrenches, soft-jaw vise protection for polished parts, thread treatments where specified, and the manufacturer-specified torque values for connecting hardware.

Listings may vary. Typically you’re purchasing the pump/piston rod itself. If a full repair kit is needed (packings, seals, etc.), add the matching GH-series packing kit and any other wear parts shown for your model in the parts breakdown.
