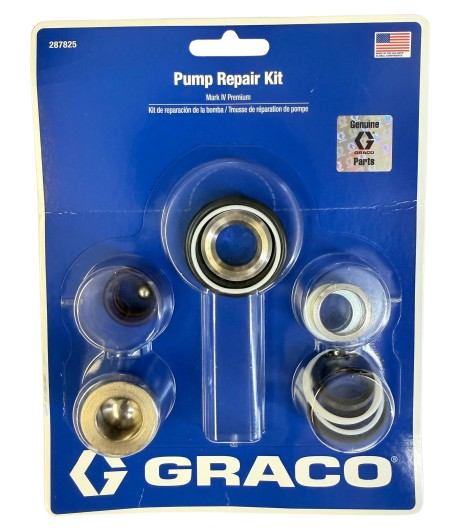

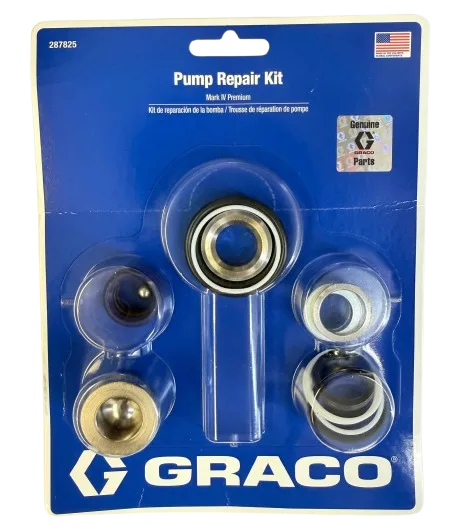

Graco 287825 Pump Packing Repair Kit
$101.03
$143.50
Save 30%
In Stock
The Graco 287825 Pump Packing Repair Kit is a genuine replacement kit designed for Mark IV sprayers. It restores pump performance, stops leaks, and maintains pressure consistency.
- Part Number: 287825
- Fits: Graco TexSpray Mark IV units
- Purpose: Replaces worn packings and seals
- Type: Genuine Graco OEM Kit
- Usage: For airless and texture spraying applications
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Overview & Key Specs
Compatible Machines
This Graco 287825 Pump Packing Repair Kit is designed for Graco pumps that use the Mark IV texture/airless pump assembly. Always verify with your unit’s parts manual before ordering.
- Graco TexSpray Mark IV (all configurations that specify 287825 in the pump/packing bill of materials)
Product Summary
The Graco 287825 Pump Packing Repair Kit replaces worn pump packings/seals to restore pressure, reduce leakage, and maintain consistent spray performance on compatible Mark IV pump assemblies.
Key Features
- Genuine Graco replacement kit for specified Mark IV pump assemblies
- Restores sealing, priming, and pressure stability
- Helps prevent material bypass and premature wear
- Suitable for both texture and high-build coatings on eligible units
Specifications
| Graco Part Number | 287825 |
|---|---|
| Item Type | Pump Packing Repair Kit |
| Pump Family | Mark IV (per model parts manual) |
| Typical Symptoms Repaired | Loss of pressure, difficulty maintaining prime, material leakage past packings |
| Use Case | Texture/airless applications on compatible TexSpray Mark IV units |
Installation & Maintenance Notes
- Verify kit number 287825 against your sprayer’s parts list before teardown.
- Inspect the rod, cylinder, and check balls/seats; replace worn parts during packing service.
- Lubricate packings per Graco guidance and tighten to specification; re-torque after initial run-in if required.
- After installation, flush and test with compatible fluid before live material.
Frequently Asked Questions
Check the pump/packing section of your official Graco parts manual for your exact model. If it lists Pump Packing Repair Kit 287825, this is the correct kit. If not, use the listed part number instead.
Common signs are loss of pressure, inconsistent spray pattern, material bypass/leakage, or frequent priming issues. Visible wear on the rod or packings also indicates service is due.
Standard mechanic’s tools typically suffice. Follow the Graco service procedure for the Mark IV pump. A soft-jaw vise, torque wrench, and packing tools can speed up the job and help avoid damage.
Inspect the piston/rod, cylinder, and check valves/balls & seats. If any are pitted or worn, replace them to prevent premature packing wear. Always flush and test after reassembly.
This kit is specified for Mark IV pump assemblies that list 287825 in the manual. Other TexSpray models often use different packing kits. Always confirm by part number in your unit’s documentation.
