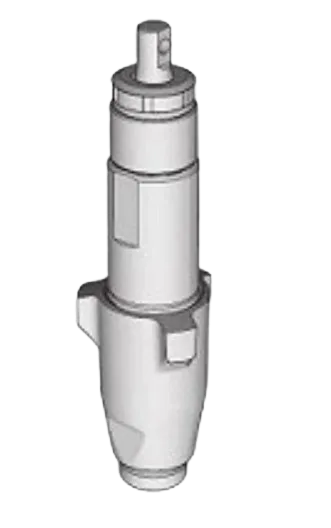

Graco 287929 Pump Replacement Repair Kit

The Graco 287929 Pump Replacement Repair Kit is a complete OEM fluid section designed for heavy-duty Graco sprayers. It restores pressure, performance, and durability for professional users.

  • Fits: UltraMax II 1095 and MARK V sprayers using the 287929 pump
  • Type: Full pump/fluid section (displacement assembly)
  • Purpose: Replaces worn lower assembly for smooth, consistent spray pressure
  • Built for: Long-life, precision performance in demanding spray environments

Retail Price: $1380
You save: $220.8 (16.00%)
Our Price: $1159.2
0
Based on 0 reviews
5
0%
4
0%
3
0%
2
0%
1
0%

Graco 287929 – Pump/Fluid Section Replacement & Verified Fitment

Compatible Machines

  • UltraMax II 1095 (select models/series that use the 287929 displacement pump)
  • MARK V (UltraMax II/Mark V configurations that use the 287929 displacement pump)

What is the Graco 287929?

The Graco 287929 is a complete pump / fluid section assembly (often called a “pump lower”) used on heavy-duty UltraMax II and MARK V sprayers. It replaces the working fluid end (cylinder/sleeve/piston/valving) as a unit, restoring performance when the original pump is worn or damaged.

Key Details

Part Number 287929
Item Type Pump / Fluid Section (displacement pump) – complete lower assembly
Common Platforms UltraMax II 1095, MARK V (units configured with the 287929 pump)
UPC (where listed) 633955138827
Typical Use Restores prime/pressure and spray quality when the original pump lower is worn

Why choose the 287929 fluid section?

  • OEM fit & performance for **UltraMax II**/**MARK V** models using this pump
  • Complete lower—faster turnaround than piecemeal rebuilds
  • Restores priming, pressure stability and finish quality

Compatibility Notes

  • Some **UltraMax II 1095** and **MARK V** generations use different pump lowers. Confirm your machine’s exact model/series.
  • Check your parts list for: “Pump, displacement 287929”. If listed, this kit is correct.
  • If your sprayer uses a different pump lower (e.g., for 695/795 families), this kit will not fit—ask us for the correct part.

Frequently Asked Questions

It is a complete pump/fluid section (displacement pump). It replaces the working lower assembly, not just seals or packings.

Check your unit’s parts list or pump label. If the pump is listed as 287929, this is the correct replacement. If your list shows a different pump number, contact us for the correct lower.

No—this is a complete lower. Routine wear items come installed within the assembly. Keep a packing kit on hand for future maintenance if you spray high volumes or abrasives.

Flush the system, use clean, strained material, set packings correctly, and prime with pump armor when storing. Inspect inlet strainers and filters to prevent early wear.

Some generations/regions use different lowers. Share your model & serial (or parts list PDF) and we’ll match the exact pump lower for your machine.
