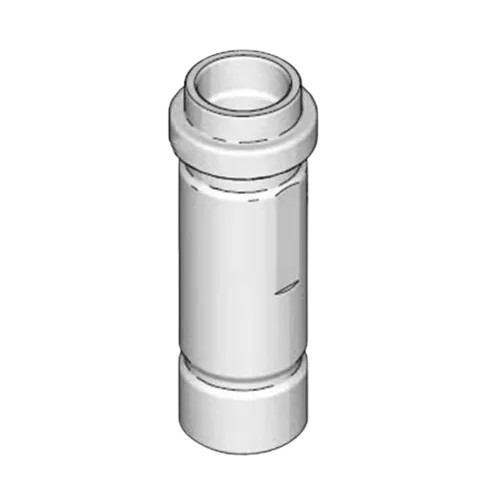

Graco 16X460 Pump Cylinder
$609.12
$846.00
Save 28%
Available to Order
- OEM Replacement Part for TexSpray Mark X and 7900HD Series Sprayers.
- Delivers durability, efficiency, and reliability for professional-grade performance.
- Ensures consistent spray pressure under demanding jobsite conditions.
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Product Overview & Compatibility
Compatible Machines
- Graco TexSpray Mark X ProContractor (e.g., 16X099)
- Graco TexSpray 7900HD ProContractor (e.g., 16W888)
- Graco TexSpray 7900HD IronMan (e.g., 16X949)
Tip: Always confirm with your sprayer’s parts manual or serial plate before ordering.
What is the Graco 16X460 Pump Cylinder?
The Graco 16X460 Pump Cylinder is a genuine OEM cylinder sleeve for the fluid section on high-output TexSpray units. It houses the packings and guides the piston/rod under high pressure, restoring factory performance when the original cylinder is worn or scored.
Quick Specs
| OEM Part | 16X460 |
|---|---|
| Type | Fluid-section pump cylinder (sleeve) |
| Fit Family | TexSpray Mark X, TexSpray 7900HD (ProContractor & IronMan) |
| Authenticity | Genuine Graco OEM replacement component |
| Typical Symptom Addressed | Loss of pressure, pulsation, premature packing wear due to a worn/etched cylinder bore |
Why choose this cylinder
- Direct-fit OEM part for reliable sealing and pressure control
- Restores spray performance and extends packing life when the old sleeve is worn
- Designed for heavy-duty texture & high-build applications typical of Mark X/7900HD
Installation Notes
- Inspect/replace packings and piston rod if worn; a fresh cylinder with fatigued packings won’t hold pressure.
- Lubricate packings and rod during assembly; torque fasteners to spec from the service manual.
- Pressure-test with water or compatible solvent before returning to production use.
Often Used With
- Complete fluid section (e.g., Mark X/7900HD assemblies)
- Packing/repair kit (for your exact Mark X or 7900HD variant)
- Piston/pump rod and throat seal lubricant
Frequently Asked Questions
Yes—this cylinder is listed for TexSpray Mark X ProContractor and TexSpray 7900HD (ProContractor & IronMan). Always verify against your exact model/part list.
Strongly recommended. A fresh cylinder with worn packings will still leak or lose pressure. Match the packing kit to your sprayer family (Mark X or 7900HD).
No. 16X460 is the cylinder sleeve only. A complete fluid section includes the cylinder plus piston/rod, valves, and packings pre-assembled.
Check your sprayer’s parts manual or exploded diagram and match the exact OEM part number 16X460 under the fluid section. If in doubt, provide your model code for confirmation.
