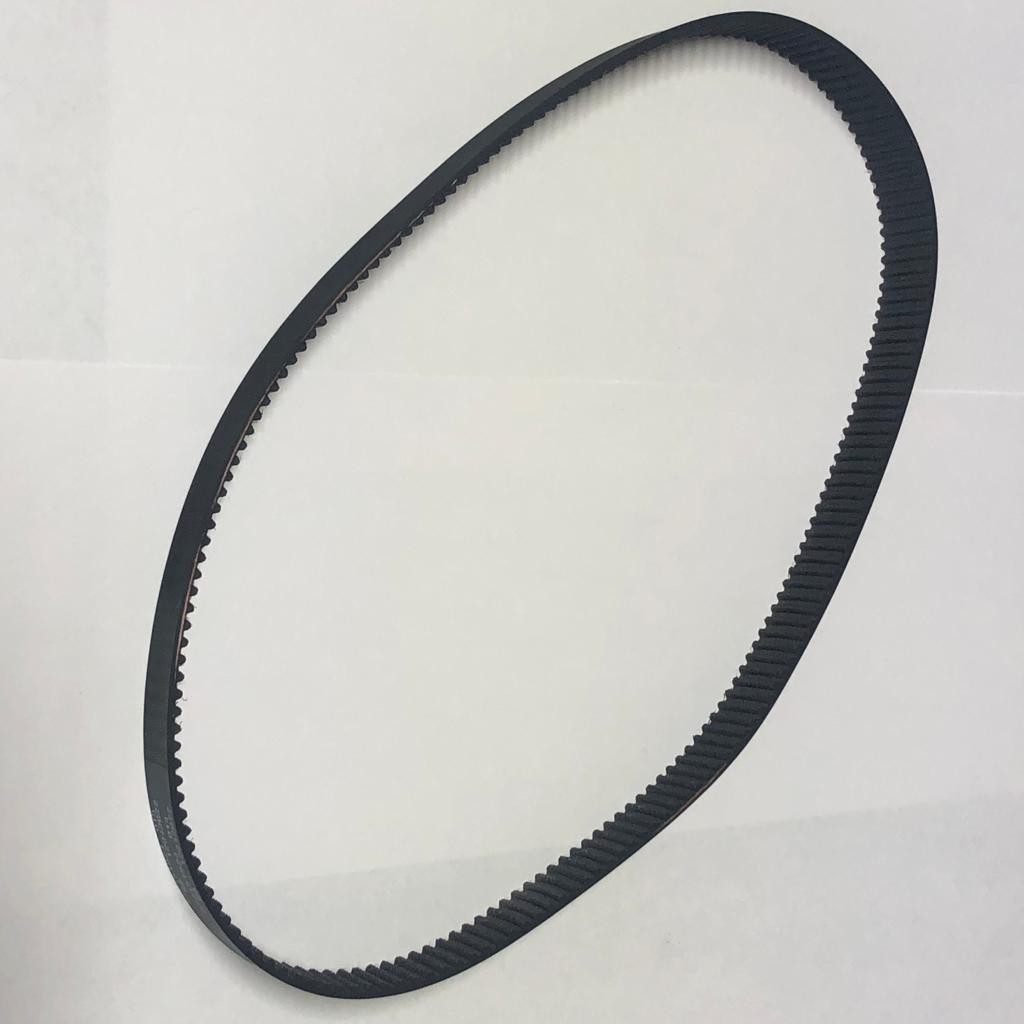

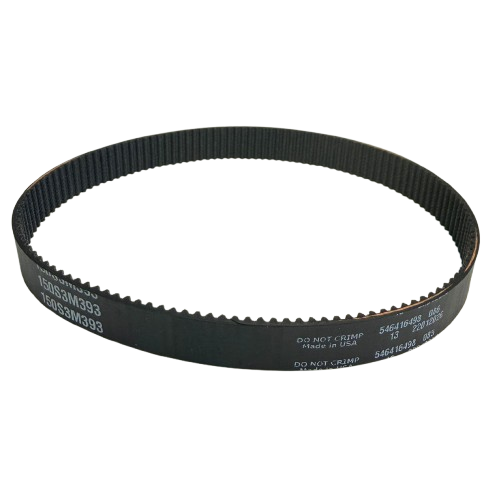

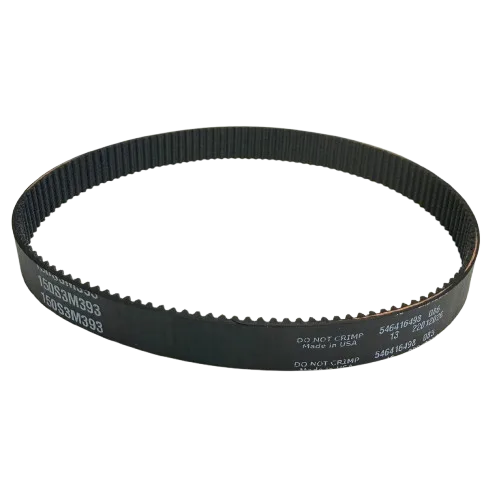

Graco 120234 3MM Timing Belt
$18.10
In Stock
The Graco 120234 3mm Timing Belt provides precise synchronization of pumps and motors for reliable operation in Graco sprayers.
- Maintains accurate timing of pistons and valves
- Durable reinforced rubber resists wear and stretching
- OEM precision fit for GH 130, GH 200, GH 230, GH 300
- Easy to install and replace without affecting other components
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 120234 3mm Timing Belt — Product Overview
The Graco 120234 3mm Timing Belt is a high-precision belt engineered to maintain synchronization of moving components in Graco spray equipment. It ensures reliable performance in high-speed and high-pressure applications.
Compatible Machines
- Graco GH 130 — drives pump assemblies and internal modules
- Graco GH 200 — maintains timing for piston and valve systems
- Graco GH 230 — ensures accurate coordination of pump and motor
- Graco GH 300 — supports high-pressure pump synchronization
Key Features & Benefits
- Durable construction: Reinforced rubber resists wear and stretching
- Precise tooth profile: Ensures accurate timing between pumps and motors
- OEM compatibility: Exact replacement for Graco equipment
- Easy installation: Simple to fit or replace without affecting other components
- Reliable performance: Handles repeated high-speed, high-pressure cycles without slippage
Applications
The 120234 timing belt is commonly used in Graco airless sprayers to synchronize pistons, pump assemblies, and motor drives, ensuring smooth operation and preventing misalignment or premature component wear.
Installation & Maintenance Tips
- Ensure proper alignment with pulleys before applying tension.
- Follow Graco's recommended tension specifications; do not overtighten.
- Regularly inspect for fraying, cracking, or stretching.
- Replace immediately if any damage is detected to maintain timing accuracy and prevent equipment issues.
Frequently Asked Questions
No. This belt is designed for specific models including GH 130, GH 200, GH 230, and GH 300. Always check the equipment manual for compatibility before installation.
Inspect the belt every 500 operating hours or during routine maintenance. Replace immediately if signs of wear, cracking, or stretching are observed to prevent misalignment or component damage.
Using non-OEM belts may lead to incorrect tooth spacing, slippage, or premature wear. OEM Graco belts are specifically designed for reliable performance and precise fit in compatible models.
