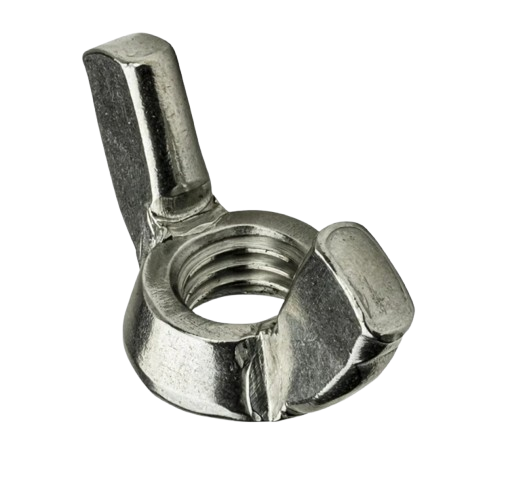

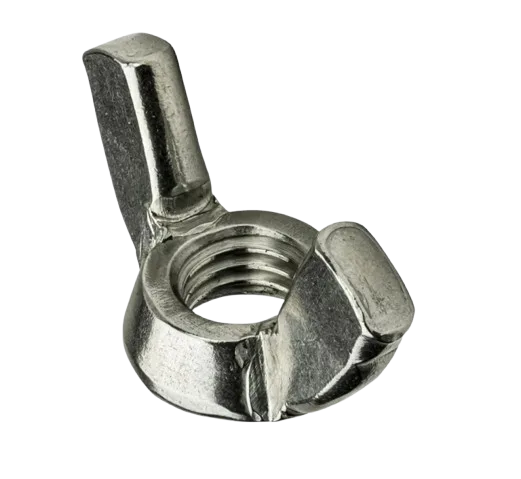

Graco 100011 Nut Wing

The Graco 100011 Nut, Wing is a genuine OEM fastener designed for quick, tool-free tightening on various Graco sprayer assemblies and accessories.

  • Used on GH 833, GH 933, GrindLazer, FinishPro HVLP, and Husky 515 units
  • Durable metal construction ensures secure hold
  • Ideal for battery trays, covers, and bracket fittings
  • Easy hand operation without tools

$12.26
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

About Graco 100011 — Nut, Wing

Compatible Machines

  • GH 833 Gas-Hydraulic Airless Sprayer (battery tray assembly uses 100011)
  • GH Series Big Rig models with electric-start battery tray, including:
    • GH 933ES, GH 933 (battery section lists 100011)
    • GH 733ES
    • GH 5040ES
  • GrindLazer scarifier models (battery/electric-start assemblies):
    • 25M992, 25M993, 25M994, 25N658, 25N659
  • FinishPro HVLP Turbine Sprayers: 7.0 / 9.0 / 9.5
  • Husky 515 / Twistork™ Packages: Model 238859 and 238860

The Graco 100011 Nut, Wing is a genuine OEM hand-tightened fastener used across multiple Graco assemblies (e.g., battery clamps, covers, brackets). Its “wing” design enables tool-free tightening/loosening for quick service access.

Key Details

OEM / Part No. Graco / 100011 (Nut, Wing)
Type Wing nut fastener (tool-free hand tightening)
Typical Use Battery clamp hardware, covers, panels, brackets on select GH, GrindLazer, FinishPro HVLP, and Husky/Twistork systems
Dimensions (approx.) Height ~0.55 in (1.40 cm) • Length ~0.80 in (2.03 cm) • Width ~0.40 in (1.02 cm)
Notes Thread spec depends on the assembly; verify in your model’s parts diagram before ordering multiples.

Why Choose the OEM Part?

  • Correct fit for assemblies that specifically call out 100011
  • Tool-free servicing thanks to wing-style design
  • Reliable retention when paired with the specified washer/bolt hardware in the manual

Fit & Verification

  • Open your unit’s parts list and search for “100011 NUT, wing”.
  • Match surrounding hardware (e.g., hook bolts, plain/lock washers) shown in the same assembly diagram.
  • If your machine isn’t listed above but the manual specifies 100011, this part is compatible.

Frequently Asked Questions

No. It fits assemblies that specifically list “100011 NUT, wing” in the parts diagram (e.g., GH battery trays, GrindLazer electric-start kits, FinishPro HVLP housings, Husky/Twistork packages). Always confirm in your model’s manual.

Thread spec is assembly-dependent and not universal across all uses of 100011. Check the hardware callouts (bolt/hook part numbers) in your specific manual to confirm thread compatibility.

Using an off-spec wing nut may affect clamping force or loosen under vibration. For critical assemblies (e.g., battery clamp hardware), use OEM Graco 100011 to ensure fit and retention per the manual.

Replace if the wings are bent/broken, threads are stripped, or if it no longer holds torque with the specified washers and hook/bolt. Frequent hand-tightening can wear threads over time.
