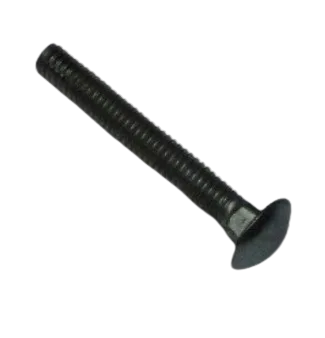

Graco 125116 Bolt Carriage

The Graco 125116 Bolt, Carriage is a genuine OEM fastener used to secure the legs and frame assemblies of Graco and Magnum airless sprayers. It ensures solid structural support for cart-mounted models.

Used on Magnum X5, LTS 15, LTS 17, and ProLTS 19 sprayers
Designed for frame and stand hardware assemblies
Durable OEM-quality steel for long-lasting performance

$0.42

Based on 0 reviews

Description

Compatible Machines

This OEM carriage bolt is used on the cart/stand frame assemblies of the following Graco/Magnum sprayers.

Magnum X5 (Series 262800) – cart/stand hardware
Magnum LTS 15 – frame/leg hardware
Magnum LTS 17 – frame/leg hardware
ProLTS 19 – frame/leg hardware
Other Magnum/Graco cart models that specify part 125116 in the frame/stand diagram

Product Overview

The Graco 125116 Bolt, Carriage is a genuine OEM fastener used to secure legs, carts, and stand components on select Graco and Magnum airless sprayers. The square neck of a carriage bolt locks into the mating slot to prevent spinning, allowing quick assembly with the matching lock nut.

Where it’s commonly used

Cart/stand leg attachment points
Frame cross-members and braces
Handle/bracket connections on wheeled (cart) models

Key Details

OEM Part #	125116
Item Name	Bolt, Carriage
Category	Fastener (frame/stand hardware)
Typical Pairing	Used with a lock nut (e.g., Graco frame hardware kits may specify a compatible lock nut)
Fitment Guidance	Always confirm with your sprayer’s parts diagram by model and serial range.
Packaging	Sold individually (1 bolt) unless otherwise noted.

Why choose OEM?

Exact length/neck profile to match Graco frame slots
Consistent fit and clamping force with factory hardware
Maintains sprayer stability and safety on cart/stand assemblies

Notes & Tips

Replace bolts in pairs when possible to keep even clamping on the frame.
If your original bolt shows corrosion or the square neck has rounded edges, replace promptly to avoid loose stands.
Verify quantity needed per diagram; some frames use multiple 125116 bolts.

Frequently Asked Questions

Check your model’s parts diagram. If the diagram lists 125116 for the frame/stand hardware, it’s a match. The models listed above commonly use this bolt.

Use the lock nut specified in your frame/stand hardware diagram for proper thread match and retention. Mixing hardware can lead to loosening under vibration.

Quantities vary by model and serial range. Refer to the leg/cart section of your parts list—order a spare to minimize downtime.

Yes—Graco 125116 is a genuine OEM part designed for the specified cart/stand assemblies.

Seat the square neck fully in the frame slot before tightening the lock nut. Tighten evenly across both sides of the frame to avoid twisting.
