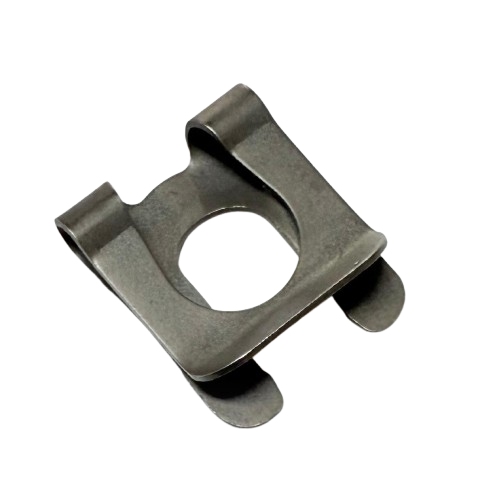

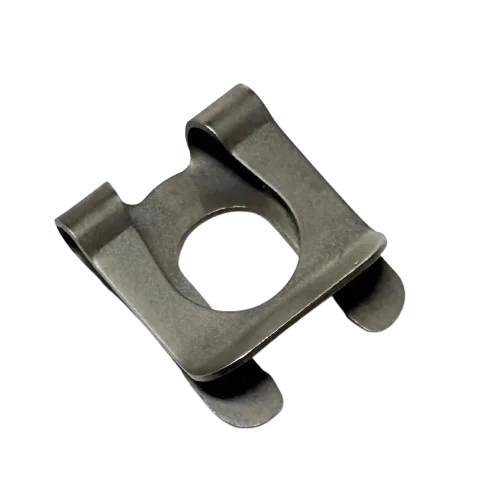

Graco 126111 External Circlip Retainer 8mm
The Graco 126111 External Circlip Retainer (8 mm) is a genuine OEM part designed to securely lock components in Graco line-striping machines for safe and reliable operation.
- OEM part number: 126111
- External circlip for 8 mm shafts
- High-strength steel for durability
- Ensures secure retention of moving components
- Compatible with LineLazer V 200, V 3900, and 130 HS series
Graco OEM 126111 External Circlip Retainer – 8 mm Replacement Part
The Graco 126111 External Circlip Retainer (8 mm) is an OEM-quality retaining ring designed for secure locking of components in Graco line striping machines and maintenance assemblies. Ideal for ensuring precise alignment and reliable operation.
Compatible Machines
| Graco Model | Application / Notes |
|---|---|
| LineLazer V 200 HS / 200 DC | OEM circlip retainer used in main component assemblies for secure operation. |
| LineLazer V 3900 / V 5900 | Installed in gun-holder or linkage assemblies to maintain stability and alignment. |
| LineLazer / LineLazer IV / V 130 HS | Part of the 2nd-gun kit (kit 25A676) to ensure secure component retention. |
Part Features & Benefits
- OEM Quality: Manufactured to Graco’s precise specifications for long-term reliability.
- Secure Retention: External circlip design firmly locks components on an 8 mm shaft.
- Durable Steel Construction: Hardened material resists wear, vibration, and fatigue.
- Easy Replacement: Standard part used across multiple Graco line striping models.
- Precision Fit: Maintains exact alignment to ensure optimal machine performance.
Product Specifications
| Specification | Details |
|---|---|
| Part Number | 126111 |
| Type | External circlip / retaining ring |
| Size / Diameter | 8 mm shaft |
| Material | Hardened steel, OEM specification |
| Quantity per Assembly | Typically 1–2, depending on machine model |
Why Choose the Genuine OEM Circlip Retainer?
Using the authentic Graco 126111 circlip ensures reliable retention of components and precise alignment in your line striping machine. Aftermarket alternatives may not match exact diameter or hardness, potentially causing vibration, loosening, or premature wear.
Installation Notes
Install by compressing the circlip with proper pliers and seating it securely in the groove of the 8 mm shaft. Proper installation prevents component movement and ensures consistent machine performance.
