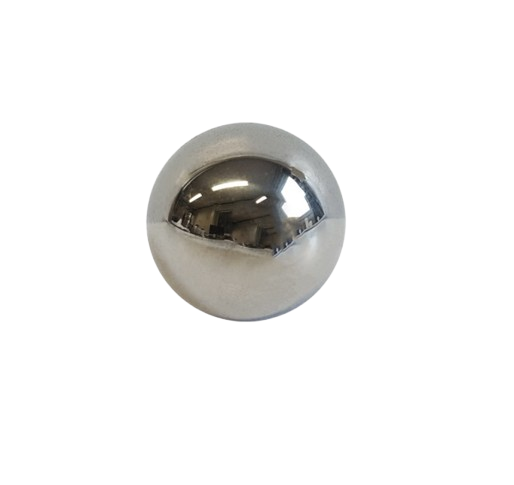

Graco 100114 Ball

The Graco 100114 Ball is a genuine steel check-valve component designed for Graco pumps and hand-pump assemblies. Ideal for maintaining flow control and pump efficiency.

  • Part Number: 100114
  • Material: Steel
  • Diameter: 7/16″ (≈ 11.2 mm)
  • Used In: Fire-Ball 15:1 Pumps, Universal Hand Pumps, and Hand Pump Assemblies
  • Function: Prevents backflow and ensures one-way fluid control

$8.6
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Compatible Machines

  • Graco Fire-Ball 15:1 Pumps — Models 206699, 206700
  • Graco Universal Hand Pump (as specified in the service/parts manual)
  • Graco Hand Pump Assembly (manual-listed assembly using 7/16″ check ball)
  • Other Graco lubrication / dispensing pumps that explicitly list 100114 in their parts breakdown

Product Details

The Graco 100114 Ball is a steel check-valve ball used inside various Graco pump and hand-pump assemblies. It seals against the valve seat to control one-way flow, restore prime, and maintain pressure stability during operation.

Key Specifications

Part Number 100114
Component Type Check-valve ball
Material Steel
Diameter 7/16″ (≈ 11.2 mm)
Typical Use Ball seat/check valve inside Graco lubrication & dispensing pumps and hand-pump assemblies
Also Referenced As Aftermarket cross: Bedford 9-610 (for reference only)
Package Contents 1 × Graco 100114 Ball

Why choose the genuine part?

  • Correct 7/16″ size for assemblies that specify 100114
  • Durable steel for reliable sealing and long service life
  • Maintains pump priming, pressure consistency, and reduces backflow

Installation & Compatibility Notes

  • Always depressurize the system and follow Graco service procedures.
  • Inspect the seat for wear or pitting; replace if damaged to ensure proper sealing.
  • Only use this ball in models/assemblies that list 100114 in the official parts breakdown.
  • Common symptoms of a worn ball: hard-to-prime pump, pressure drop, material backflow, spitting.

Frequently Asked Questions

It acts as the check-valve ball, sealing against the valve seat to allow one-direction flow, keep the pump primed, and prevent backflow/pressure loss.

Check your pump’s parts list or service manual. If the breakdown specifically lists 100114 (7/16″ ball), this is the correct part. If not, use the exact part number specified for your model.

The 100114 ball is steel with a diameter of 7/16″ (≈ 11.2 mm).

Depressurize, clean the valve cavity, inspect/replace the seat if worn, and reassemble per the Graco service guide. Prime the unit and verify sealing/pressure holds under normal operating conditions.

Many Graco pumps share common check-valve components. If your manual lists a different ball part number, use that exact number. If needed, share your model/serial and we’ll map the correct part.
