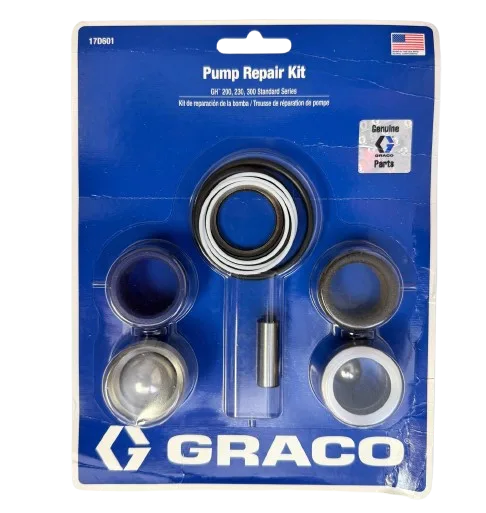

Graco 17D601 Standard Pump Packing Repair Kit - Overview & Compatibility
Compatible Machines
This packing repair kit fits the following GH Standard pump sprayers:
- Graco GH-200 (Standard pump variants)
- Graco GH-230 (Standard pump variants)
- Graco GH-300 (Standard pump variants)
Common related assemblies using this kit include:
- 24W929 — GH Standard / Convertible
- 24W930 — GH Standard with Electric Motor
- 24W935 — GH Standard 300
Tip Confirm your sprayer’s pump style is GH Standard (not ProContractor/Direct Drive variants). If your model number differs, check the pump assembly bill of materials to verify it uses 17D601.
What is the Graco 17D601 Standard Pump Packing Repair Kit?
The 17D601 is a genuine Graco kit containing the internal packing and sealing components for the GH Standard fluid section. Replacing worn packings restores sealing, reduces leaks, and brings the pump back to optimal performance—without changing the entire pump.
Key Benefits
- OEM fit & materials for GH-200 / GH-230 / GH-300 Standard pumps
- Refreshes seals/packings to cure leaks, pressure loss, and poor prime
- Minimizes downtime vs. full pump replacement
- Supports consistent spray pattern and pressure stability
Quick Facts
| Part Number |
17D601 |
| Type |
Standard Pump Packing Repair Kit for GH-series Standard pumps |
| Typical Use |
Stops fluid leakage, restores prime/pressure, routine pump overhaul |
| Compatible Pumps |
GH-200, GH-230, GH-300 (Standard) |
| Related Assemblies |
24W929, 24W930, 24W935 |
| Installation |
Requires disassembly of the fluid section; follow Graco manual torque specs & orientation |
| When to Replace |
Persistent leaking from the throat, loss of pressure, frequent re-priming, visible packing wear |
Typical Kit Contents
- Upper & lower packings (stacked seals)
- Sealing rings / backup rings
- O-rings and wear components per GH Standard spec
How to Confirm Fit
- Check your sprayer ID plate for GH-200 / GH-230 / GH-300 and “Standard” pump type.
- Open your parts manual; verify the packing kit callout is 17D601 for the fluid section.
- If retrofitted or converted, match against assembly numbers 24W929 / 24W930 / 24W935.
Frequently Asked Questions
No. 17D601 is for GH Standard pump configurations. For other GH variants, confirm the pump family and refer to the correct Graco packing kit part number in the manual.
Persistent fluid leaks at the throat, difficulty priming, pressure fluctuations, or reduced output typically indicate worn packings and sealing rings.
Yes—if you’re comfortable rebuilding the fluid section. Follow the Graco manual for orientation, lubrication, and torque specs. If unsure, have a service tech install it.
It depends on materials sprayed and maintenance habits. High-abrasive coatings and long duty cycles shorten life. Inspect regularly; replace at the first signs of leakage or pressure instability.
