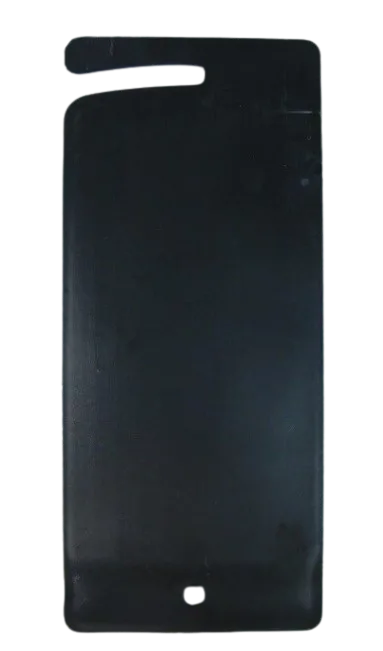

Graco 15D561 Tool Tray Cover — Detailed Description
The Graco 15D561 is an OEM‑quality tool tray cover designed to fit Graco sprayer systems. This component protects the tool tray from damage, locks in stored tools and accessories, and helps maintain a clean, safe working environment on job sites.
Key Features & Benefits
- Manufactured to precise Graco OEM specifications for a secure fit and reliable performance.
- Durable plastic construction resists impact, wear and job‑site debris.
- Designed to cover and protect the tool tray area — keeping tools, hose fittings and accessories safely stored.
- Helps maintain a professional appearance and lowers the risk of lost or damaged tools during transport or operation.
- Easy to install and replace, reducing maintenance downtime and keeping sprayer equipment organized.
Compatibility & Application
The 15D561 tool tray cover is listed as a component for Graco sprayers in the RTX series and other models that include a tray for stepladders, nozzles and tools on the machine frame. It serves as the protective lid for that tray, securing stored items when the machine is in transit or idle.
Technical Specifications
| Specification |
| Part Number |
15D561 |
| Description |
Tool Tray Cover for Graco sprayers |
| Material |
High‑impact durable plastic (OEM‑grade) |
| Function |
Cover and protect the tool tray area of the machine |
| OEM Compatibility |
Designed to original Graco equipment standards |
Installation & Maintenance
- Ensure the tool tray area is clear of loose items before replacing the cover.
- Remove any fasteners or hinges securing the old cover, if present.
- Align the new 15D561 cover correctly over the tray opening and secure it with screws or latches as required.
- Check that the cover closes properly and is flush with the surrounding surface to avoid pinch points or tool damage.
- Periodically inspect the cover and hinge (if applicable) for cracks, wear or damage; replace if necessary to maintain tool safety.
Why this cover matters
- Maintaining a secure cover ensures stored tools remain protected and does not interfere with machine operation or transport.
- A damaged or missing tray cover can lead to tool loss, damage, or create a hazard in mobile applications.
- Using the correct OEM component preserves the equipment’s look and reliability, avoiding fit issues or aftermarket compromises.
Frequently Asked Questions
The 15D561 is used on Graco RTX series machines and other models which feature a built‑in tool tray area to store nozzles, cleaning tools and accessories.
Yes, installation is straightforward—remove the old cover (if present), align the new 15D561 cover and secure with screws or latches. Minimal tools required.
A proper fit prevents tools from shifting or falling out during operation or transport; it also protects the machine’s internal components from debris and reduces wear on the tray area.
