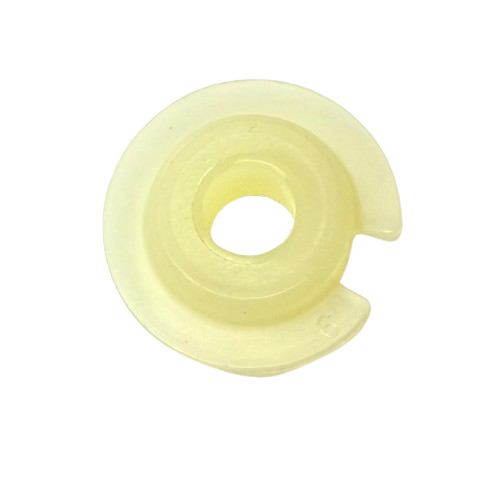

The Graco 15H622 Non-Metallic Gasket delivers a durable, one-piece seal designed for heavy-duty extension pole applications. Engineered to replace older two-piece setups, this gasket ensures consistent spray performance and precise fluid delivery within your high-pressure filtration system. Compatible with a wide range of professional airless sprayer configurations, it offers leak-free operation and extended service life for contractors who demand reliability on every job.
Whether you are tackling large-scale painting projects or intricate surface treatments, the 15H622 gasket is an essential component for achieving flawless results with professional coatings. Its robust design resists abrasive wear and chemical exposure, maintaining optimal spray patterns and finish quality. Ideal for commercial painters and restoration specialists, this gasket streamlines maintenance and minimizes downtime, allowing you to focus on precise application and exceptional look.
$1.26The Graco 15H622 Non-Metallic Gasket represents a significant advancement in heavy-duty airless sprayer systems. Engineered specifically for professional coatings applications and high-pressure extension poles, this gasket simplifies maintenance by consolidating the traditional two-piece seal and O-ring into a durable single component. Designed to perform seamlessly under demanding conditions, it supports pump efficiency by maintaining consistent pressure delivery, minimizing downtime, and ensuring uniform fluid flow. Its compatibility with a wide range of solvent- and water-based media reduces chemical degradation risks, contributing to extended operational lifecycles.
Constructed from advanced thermoplastic elastomer blends, the gasket delivers superior wear resistance and dimensional stability across temperature fluctuations. Material selection focused on competing priorities: high elasticity to maintain fluid tightness, low friction for swift installation, and robust chemical resistance against harsh solvents found in industrial-grade primers and topcoats. The non-metallic formulation prevents galvanic reactions at the interface, preserving adjacent stainless-steel or brass fittings. These features cater directly to applicators seeking reliable performance with professional coatings and precision results over extended service intervals.
Performance metrics for the 15H622 gasket include validated operational pressures up to 5,000 psi, thermal endurance from -40°C to 150°C, and cycle life exceeding 50,000 actuation events in controlled testing environments. Seal longevity is further supported by micro-groove channels molded into the face, promoting even liquid distribution and reducing localized wear. Dimensional tolerances within ±0.05 mm ensure repeatable seal compression without overloading the extension pole assembly or pump manifold. These quantified parameters allow system designers to calculate maintenance schedules and predict replacement intervals with confidence.
The single-piece gasket replaces the legacy two-piece design that required a separate brown O-ring and inner seal, streamlining assembly workflows and reducing part count. Its flanged profile locks into pre-machined bores on Graco extension poles, eliminating rotational slippage and ensuring concentric alignment. The cross-sectional profile was optimized through finite element analysis to achieve uniform stress distribution under high-pressure sealing conditions. This approach enhances gasket fatigue resistance and reduces the risk of extrusion into pump channels during transient pressure spikes. The simplified installation process supports rapid field servicing, even under time-critical maintenance stops.
Key design considerations included compatibility with Graco’s high-pressure filtration modules and fluid handling manifolds. The gasket’s resilience to particulate abrasion complements upstream filter elements, safeguarding the primary pump from foreign contaminants. As part of an integrated sealing strategy, the component aids in preserving pump efficiency by preventing bypass leaks that can lead to cavitation or flow instabilities. Engineers can leverage the gasket’s standardized footprint to retrofit existing airless sprayer systems, minimizing reconfiguration efforts.
Ideal for industrial painting rigs, line stripers, and large-scale coating booms, the 15H622 gasket addresses critical seal challenges in mobile and fixed installations. Its robust construction enables uninterrupted operation in automotive assembly lines, architectural finishing, and marine coating platforms. When subjected to cyclic loading during continuous spray operations, the gasket maintains integrity, ensuring consistent spray patterns and film thickness control essential for high-quality surface finishes. Users report simplified equipment upkeep and improved throughput thanks to predictable service intervals and reduced seal-related malfunctions.
Maintenance protocols recommend visual inspection of the gasket face for wear or deformation, coupled with replacement before the end-of-life threshold indicated by minor flash extrusion. This proactive approach maximizes seal longevity while preserving system uptime. When integrating the 15H622 gasket, technicians should confirm bore cleanliness and alignment before insertion, apply a thin film of compatible lubricant to aid initial seating, and torque the assembly according to Graco’s specified values. By adhering to these best practices, operations achieve optimal performance from their airless sprayer setups, reinforcing reliability in demanding professional coatings environments.
