Graco 101242 Retaining Ext Ring
$7.95
Available to Order

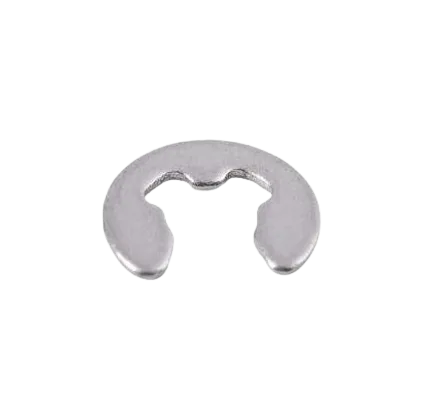

The Graco 101242 Retaining Ext Ring is a genuine OEM part used to secure the wheel or hub assembly on Graco airless sprayers. It ensures stable wheel retention and safe mobility.
- Part Number: 101242
- Description: Ring, Retaining, External
- Fits: Ultra Max II 695 / 795 / 1095 / 1595 & Pro 301 / 501 / 701
- Use: Holds cart wheel/hub securely on axle
- Type: OEM hardware replacement
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Compatible Machines (Fitment)
- Graco Ultra Max II 695 / 795 / 1095 / 1595 (cart models)
- Graco Pro 301 (224-604)
- Graco Pro 501 (223-637)
- Graco Pro 701 (223-638)
- Graco Upright Cart Airless series (e.g., 231-001)
- Graco Lo-Boy Cart Airless series (e.g., 231-051 / 231-077 / 231-085)
If your sprayer is not listed, check your unit’s parts diagram for the wheel/hub assembly—this 101242 Retaining Ring is commonly referenced near the axle components.
Part Function & Overview
The Graco 101242 Retaining Ext Ring (officially: Ring, Retaining, External) is a genuine OEM fastener used to secure wheel or hub components on select Graco airless sprayer carts. It helps prevent axial movement, ensuring stable transport and safe operation.
Key Specifications
| Brand | Graco |
|---|---|
| Graco Part No. | 101242 |
| Official Description | Ring, Retaining, External |
| Typical Location | Cart wheel / hub / axle retention on compatible sprayers |
| Replacement Type | OEM hardware (external retaining ring) |
When to Replace & Quick Tips
- Wheel wobble, loose hub, or missing/damaged ring indicates replacement is due.
- Inspect axle groove for wear; ensure the new ring fully seats in the groove.
- Use appropriate retaining-ring pliers for safe install/removal.
- Always verify model compatibility against your sprayer’s parts manual.
Frequently Asked Questions
Check your sprayer’s parts manual or exploded diagram for the wheel/axle section. If the listing shows 101242 (often noted as Ring, Retaining, External), this is the correct part. If unsure, provide your model number to confirm.
Use retaining-ring pliers sized for the ring. Clean the axle groove and lightly deburr if needed. Compress the ring evenly and ensure it snaps fully into the groove—partial seating can cause wheel looseness.
Wobbling wheels, side-to-side play, or visible gaps at the axle groove are common signs. If the ring is cracked, deformed, or missing, replace it immediately to avoid cart damage or unsafe handling.
