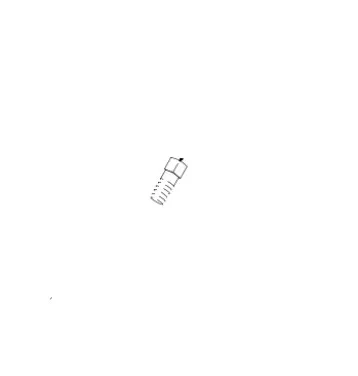

Graco 101554 Screw Set

The Graco 101554 Screw Set is a genuine OEM fastener designed to secure hubs and collars in Graco spray guns, ensuring stable performance under pressure.

  • Thread Size: 3/8-16 × 3/4″
  • Point Type: Cup-point for strong grip
  • Fits: Graco 206513, 207614, 206887, 904372
  • OEM Quality: Ensures durability and precise fit

$63.95
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Compatible Machines

  • Graco 206513 (Spray Gun Series J) — uses 101554 set screw
  • Graco 207614 (Spray Gun Series B) — uses 101554 set screw
  • Graco 206887 (Spray Gun Series F) — uses 101554 set screw
  • Graco 904372 (Spray Gun Series A) — uses 101554 set screw
  • Other Graco spray guns / assemblies that specify a 3/8-16 × 3/4″ cup-point set screw (verify in your parts diagram).

Part Overview

The Graco 101554 Screw Set (set screw) is a genuine OEM fastener used to lock hubs, collars, and fixtures in Graco spray guns and related assemblies. Its cup-point bites into the mating surface to resist loosening under vibration.

Key Features

  • OEM authentic fastener for correct fit and clamping force
  • Cup-point tip for strong bite and vibration resistance
  • Helps maintain alignment and seal compression in service
  • Used across multiple Graco spray gun models and sub-assemblies

Specifications

Part Number 101554
Type Set screw (square/hex drive depending on assembly)
Thread Size 3/8-16 (UNC)
Length 3/4″ (approx., per referenced service lists)
Point Style Cup-point
Uses Securing collars, hubs, brackets, and alignment points in spray gun assemblies

Installation & Replacement Tips

  • Seat the cup-point on a flat/dimpled area; do not over-torque.
  • Replace if threads are worn or the tip has lost bite.
  • Re-check torque after first use cycle to ensure retention under vibration.

Frequently Asked Questions

No. It fits multiple models (see list above) but not every unit. Always confirm with your machine’s parts diagram; if it lists 101554, this is the correct screw.

It is commonly referenced as 3/8-16 × 3/4″ with a cup-point. Drive style varies by assembly (square/hex). Check your manual for the exact variant used.

Clean threads, apply threadlocker only if specified, seat the cup-point on a prepared flat/dimple, and tighten to the torque listed in your service manual. Re-check after the first run cycle.
