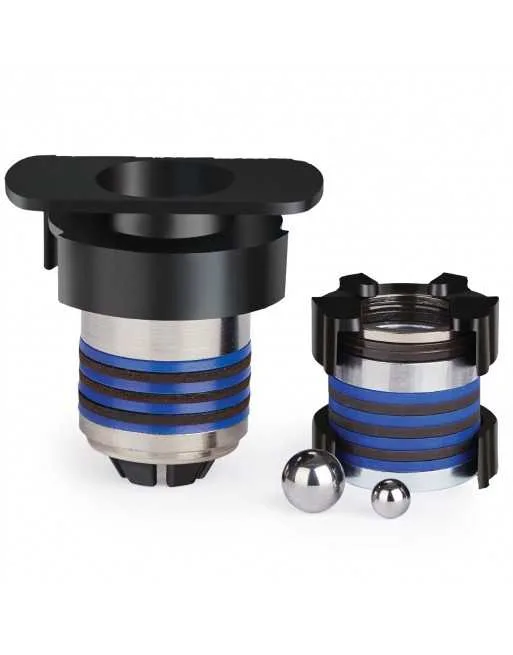

Graco 17H852 Pump Repair Kit — QuikPak Cartridge for Endurance Vortex Pumps
Compatible Machines
This kit services sprayers that use the Endurance Vortex MaxLife / Endurance Vortex MaxLife Extreme piston pump.
- • Graco TexSpray Mark X — Standard, ProContractor, IronMan (model years typically 2014+)
- • Graco TexSpray 7900 HD — Standard, ProContractor, IronMan (model years typically 2014+)
What is the Graco 17H852 Pump Repair Kit?
The 17H852 is a QuikPak Cartridge Repair Systema pre-assembled, pre-lubricated packing set that lets you repack your piston pump quickly without juggling loose seals and O-rings. It restores prime, pressure, and longevity while minimizing downtime and mess.
- Faster service: Drop-in cartridge simplifies installation and reduces errors.
- Leak control: Refreshes worn packings to stop paint/compound bypass and pressure loss.
- Long life: Designed for Endurance Vortex MaxLife pump families used on heavy-duty texture rigs.
Quick Specs
| Part No. | 17H852 |
| Kit Type | QuikPak Cartridge packing/seal replacement |
| Pump Family | Endurance Vortex MaxLife / MaxLife Extreme piston pumps |
| Typical Use | Restores performance on TexSpray Mark X and TexSpray 7900 HD series |
| Install Time* | Generally quicker than traditional loose-pack kits due to pre-assembled cartridge |
| Signs You Need It | Loss of pressure, material leakage past packings, frequent priming, inconsistent spray fan |
When should you choose 17H852?
- You own a compatible TexSpray Mark X or TexSpray 7900 HD model using Endurance Vortex pumps.
- You want a faster, cleaner packing change vs. traditional multi-piece kits.
- Your pump shows leakage, drops pressure, or requires frequent re-priming.
Install Notes (at-a-glance)
- Depressurize and follow your sprayer’s safety procedures.
- Remove pump, extract old packings, clean bore and rod surfaces.
- Insert the pre-assembled QuikPak cartridge per pump manual orientation.
- Reassemble, prime with compatible fluid, and check for leaks.
Frequently Asked Questions
It replaces worn pump packings/seals that cause pressure loss, leakage, and poor atomization restoring your Endurance Vortex MaxLife pump’s performance.
Check that your machine is a TexSpray Mark X or TexSpray 7900 HD variant that uses an Endurance Vortex pump. Match the kit number in your service manual or consult the pump label.
No special tools are typically required beyond standard hand tools. The cartridge is pre-assembled to speed up installation. Always follow the factory service procedure.
QuikPak arrives as a pre-built, pre-lubed cartridge fewer loose parts, faster fitment, and reduced risk of mis-stacking seals compared with multi-piece kits.
Replacement intervals depend on materials sprayed and maintenance practices. Inspect packings when you notice pressure drop, leakage, or erratic spray; service proactively on heavy-duty texture work.
Need a quick check? If your sprayer is a TexSpray Mark X or TexSpray 7900 HD running an Endurance Vortex (MaxLife or Extreme) pump, this is the right 17H852 kit.
