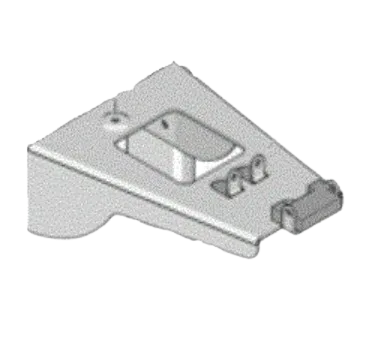

Graco 16D683 Frame X7 and LTX17
$29.70
Available to Order
The Graco 16D683 Frame is an OEM replacement that restores proper stability and alignment for Magnum X7 and LTS17 airless sprayers.
- Compatible with Magnum X7
- Compatible with Magnum LTS17
- Durable OEM construction
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 16D683 Frame for X7 and LTS17
Compatible Machines
- Graco Magnum X7 (all series)
- Graco Magnum LTS17 (all series)
The Graco 16D683 Frame is a genuine OEM replacement chassis designed to provide proper structural support for specific Graco Magnum airless sprayers. It restores original stability, ensures correct component alignment, and maintains factory-grade durability for long-term sprayer performance.
Product Features
- OEM frame designed specifically for Magnum X7 and LTS17 sprayers
- Durable construction for long-lasting structural integrity
- Direct-fit design ensures easy installation without modification
- Maintains sprayer balance, stability, and correct component positioning
Technical Details
| Part Number | 16D683 |
|---|---|
| Part Type | Frame / Chassis Assembly |
| Compatible Models | Magnum X7 & Magnum LTS17 |
| Replacement Type | Genuine OEM Graco Part |
Why Choose This Frame
- Keeps your sprayer stable and properly supported
- Ensures correct alignment of pump, motor, and hose connections
- Ideal replacement for bent, damaged, or worn-out frames
- Restores original performance and safety standards
Frequently Asked Questions
Yes, the 16D683 Frame fits all series of the Graco Magnum X7 sprayer.
Yes, this frame is designed for the complete LTS17 line, including retail-specific variants.
Yes, the 16D683 is an authentic OEM part manufactured by Graco.
Basic hand tools are typically needed to transfer the pump, motor, and handle assembly onto the new frame.
