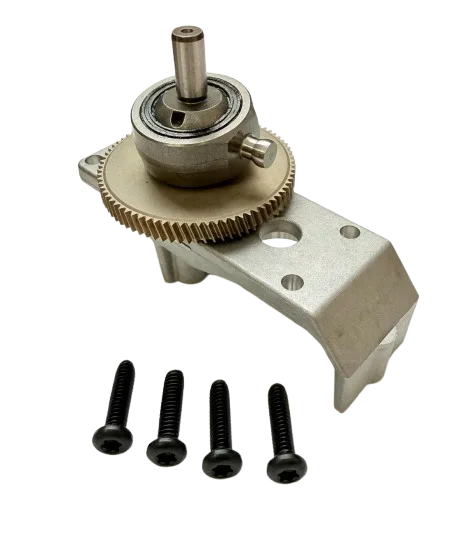

Graco 16E835 Drive Repair Kit

The Graco 16E835 Drive Repair Kit restores smooth drive performance for Magnum and LTS sprayers using the Cinderson motor system. Perfect for fixing grinding or uneven strokes.

Fits Models: LTS 15, LTS 17, Magnum X5, Magnum X7
Type: Gear & Drive Repair Kit
Motor Style: Cinderson / 9.6°
OEM Quality: Genuine Graco replacement part

Retail Price: $82.5

You save: $6.85 (8.30%)

Our Price: $75.65

Based on 0 reviews

Description

Restore Your Magnum/LTS Drive System with the Graco 16E835 Drive Repair Kit

Compatible Machines

This Gear & Drive kit for the Cinderson motor fits the following Graco models/series:

Graco LTS 15 — Model 257060 (Series B, C)
Graco LTS 17 — Model 257065 (Series B, C)
Graco Magnum X5 — Model 262800 (Series B, C, D)
Graco Magnum X7 — Model 262805 (Series B, C)

What is the 16E835 Drive Repair Kit?

A genuine Graco kit containing the critical gear & drive components for sprayers built with the Cinderson motor platform. Replacing worn drive parts can reduce vibration, restore consistent pressure, and extend overall sprayer life.

Part Identification

Part Number	16E835
Also Referred To As	Gear & Drive (for Cinderson motor), Drive Repair Kit
Motor / Angle	Cinderson / 9.6°
UPC / GTIN	00633955579002
Compatibility Reminder	Confirm your sprayer’s model and series (e.g., X5 262800 Series B/C/D) before ordering.

Install & Maintenance Tips

Disconnect power and relieve pressure prior to any service.
Inspect drive gears and bearings for wear; replace any damaged components while the unit is open.
After installation, verify smooth stroke and listen for abnormal noise on first test run.
Pair with routine pump maintenance (e.g., packing/pump kits) to extend service intervals.

Frequently Asked Questions

Match both your model and series:

LTS 15 257060 (B, C)
LTS 17 257065 (B, C)
Magnum X5 262800 (B, C, D)
Magnum X7 262805 (B, C)

Loud grinding, erratic stroke, motor running without the pump cycling, or visible gear wear typically indicate the drive components are due for service.

No. 16E835 is a Drive Repair Kit (gear & drive). Pump repair kits (e.g., Graco pump/packing kits) service the fluid section, not the motor drive.

Basic hand tools usually suffice. Follow your sprayer’s service manual for torque specs and alignment steps. If gears show severe damage, inspect adjoining components before reassembly.

Use this kit only on the listed models/series. Other series may require different drive parts. Always verify by model and series before purchase.
