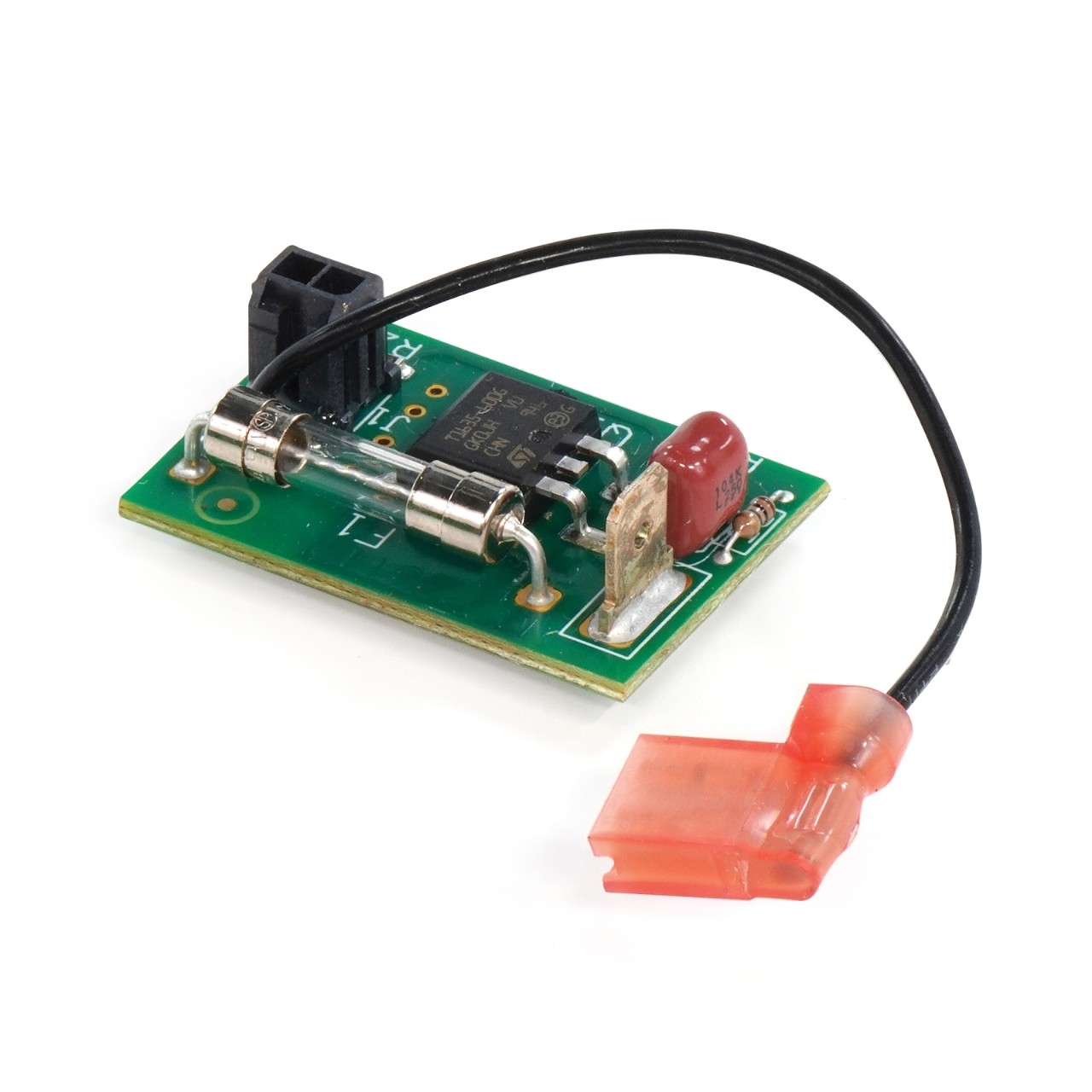

Graco 16F102 Control Board Repair Kit
5/5
(1 review)
$55.26
$60.25
Save 8%
Available to Order
The Graco 16F102 Control Board Repair Kit is an OEM replacement designed to restore proper electronic control in compatible Tradeworks and Magnum sprayers.
- Replaces damaged control board
- Ensures stable motor and pressure control
- Fits Tradeworks 150 / 170 & Magnum Project Painter Plus
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Graco 16F102 Control Board Repair Kit
Compatible Machines
- Graco Tradeworks 150 (Model 826620 – Series A/B)
- Graco Tradeworks 170 (Model 826630 – Series A/B)
- Graco Magnum Project Painter Plus (Model 257025)
The Graco 16F102 Control Board Repair Kit is an OEM replacement designed to restore proper electronic control in compatible airless paint sprayers. It replaces a damaged or failed control board to ensure smooth motor regulation and stable spraying performance.
Key Features
- OEM control board kit engineered for reliable performance
- Restores proper sprayer operation when the original board is damaged
- Designed specifically for listed Tradeworks and Magnum units
- Supports consistent pressure and motor control
Technical Details
| Part Number | 16F102 |
|---|---|
| Part Type | Control Board Repair Kit |
| Category | Electrical / Control System |
| Material | Factory-specified electronic components |
| Use | Replaces damaged or malfunctioning control board |
When to Replace the Control Board
- Motor does not run even though power is reaching the sprayer
- Sprayer cycles irregularly or shuts off unexpectedly
- Burnt smell or visible board damage inside the control housing
- Diagnosed failure from resistance and voltage testing
Additional Notes
- Always verify model and series before ordering
- Ensure the motor and pressure control switch are functioning correctly; faulty components may damage a new board
- Disconnect power and relieve system pressure before installation
Frequently Asked Questions
Common signs include no motor response, inconsistent spray pressure, sudden shutdowns, or visible burn marks on the board. If the motor tests good but does not run, the control board is often the failed component.
It fits only the listed Tradeworks and Magnum models. Other sprayers require different control boards, so checking the parts manual for your exact model is recommended.
Yes. The 16F102 kit is a genuine OEM part manufactured by Graco to ensure full compatibility and reliable electronic performance.
Before installing, disconnect power, relieve pressure, and confirm the motor and pressure control switch are in good condition. Damaged electrical components can cause premature board failure.
