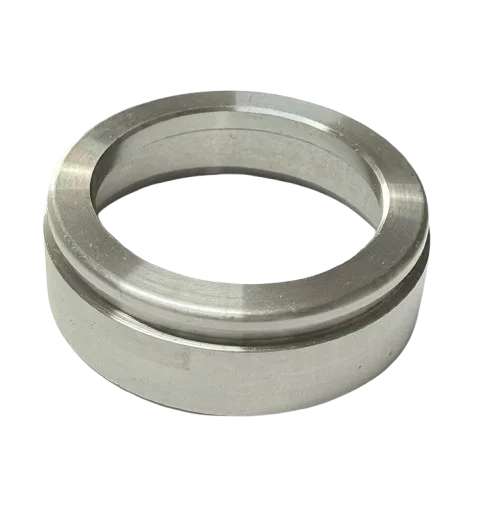

Graco 16M291 Sleeve Spacer

The Graco 16M291 Sleeve Spacer ensures proper alignment of the displacement pump sleeve for smooth and reliable operation.

OEM part for Mark-series pumps
Helps reduce internal wear
Supports correct pump assembly spacing

Retail Price: $29.1

You save: $0.58 (1.99%)

Our Price: $28.52

Based on 0 reviews

Description

Graco 16M291 Sleeve Spacer

Compatible Machines

This Graco 16M291 Sleeve Spacer is used in specific Graco Mark-series displacement pump assemblies. Below are the confirmed compatible models:

Graco Mark IV (Displacement Pump Models Using Sleeve Spacer 16M291)
Graco Mark VII (Including Pump Model 16Y763)
Graco Mark VII Max / ProContractor Series (17E-Series Pumps)

Product Details

The 16M291 Sleeve Spacer is a precision spacer located between the sleeve and adjoining pump components. It ensures correct pump alignment, protects internal surfaces, and supports smooth operation of the piston and sleeve assembly in high-pressure Mark-series pumps. It is an important wear-related part and should be replaced whenever the pump is serviced.

Key Features

Ensures proper alignment of pump sleeve components
Supports smooth piston operation under high pressure
Prevents internal wear and maintains pump performance
OEM replacement part for Mark-series displacement pumps

Frequently Asked Questions

It holds the sleeve in the correct position inside the displacement pump, ensuring smooth piston movement and reducing internal wear during operation.

Yes. The service manual states that an O-ring must be installed on the sleeve spacer during pump reassembly to maintain proper sealing.

No. This spacer is specific to Mark-series displacement pumps. Ultra Max II and GMAX models typically use different spacer components.
