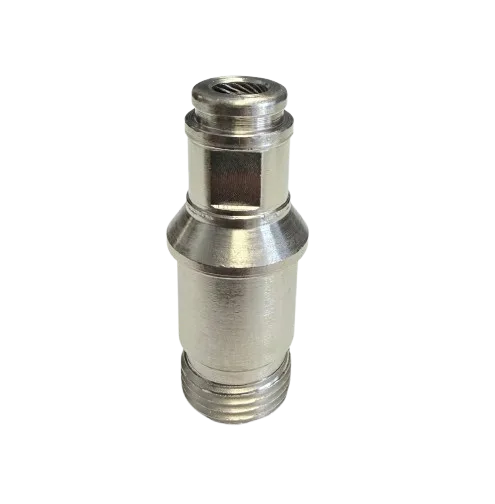

Graco 16X833 Quick Disconnect Fitting 3/8 NPSM

The Graco 16X833 Quick Disconnect Fitting 3/8 NPSM provides fast, tool-free hose and gun changes for compatible Graco sprayers.

  • 3/8 NPSM threaded quick-disconnect
  • OEM Graco fitting for proper sealing
  • Ideal for maintenance and hose swaps
  • Fits Ultra Max II 695, 795, 1095, 1595

$22.23
0
Based on 0 reviews
5 ★
0%
4 ★
0%
3 ★
0%
2 ★
0%
1 ★
0%

Quick Disconnect Fitting – Product Details & Compatibility

Compatible Machines

This fitting is designed for professional-grade Graco sprayers that use a 3/8 NPSM quick-disconnect connection. Below is the list of machines it fits:

  • Graco Ultra Max II 695 Pro Contractor
  • Graco Ultra Max II 795 Pro Contractor
  • Graco Ultra Max II 1095 Pro Contractor / Iron Man
  • Graco Ultra Max II 1595 Pro Contractor / Iron Man

Product Overview

The Graco 16X833 Quick Disconnect Fitting 3/8 NPSM is an OEM connection component used to quickly attach or detach hoses and spray guns from compatible high-pressure sprayers. Its 3/8 NPSM thread ensures proper sealing and reliable fitment for fluid transfer systems that require a secure, tool-free quick-connect design.

Key Features

  • OEM Graco part for accurate fit and long-term reliability
  • 3/8 NPSM thread for industry-standard compatibility
  • Quick-disconnect design for fast hose or gun changes
  • Improves efficiency during cleaning and maintenance

Technical Information

Part Number 16X833
Thread Type 3/8 NPSM
Connection Style Quick Disconnect
Application Hose & Spray Gun Attachment
OEM Graco Original Part

Frequently Asked Questions

It allows fast and tool-free connection or removal of hoses and spray guns, improving workflow efficiency and simplifying maintenance.

Yes, this is an official OEM Graco part manufactured for precise fit and optimal performance.

It is specifically designed for systems using 3/8 NPSM connections. Adaptors may be required for other thread sizes.
