Graco 17L085 Magnum Cover Repair Kit
5/5
(1 review)
$36.67
$38.80
Save 5%
In Stock
The Graco 17L085 Magnum Cover Repair Kit restores the housing cover of your Graco Magnum sprayer, protecting internal components and maintaining a clean, professional look.
- Genuine OEM Graco part
- Includes housing cover, screws, and front label
- Fits Magnum X5, X7, LTS 15, and LTS 17 models
- Protects motor and electronics from dust and debris
Quantity
Genuine OEM Part
Fast Shipping (Order by 1 PM CST)
Easy Returns
Quick Overview of the Kit
Compatible Machines
This Graco 17L085 Magnum Cover Repair Kit (housing/front cover kit) is used on the following Magnum series sprayers:
- Magnum X5
- Magnum LTS 15
- Magnum X7
- Magnum LTS 17
Product Summary
The Graco 17L085 Magnum Cover Repair Kit is a genuine OEM housing cover kit that restores and protects the sprayer’s enclosure, helping shield internal components (motor, wiring, control board) from dust and jobsite damage. It’s a direct-fit kit engineered for the Magnum X5/LTS 15 and X7/LTS 17 platforms for fast, clean replacement.

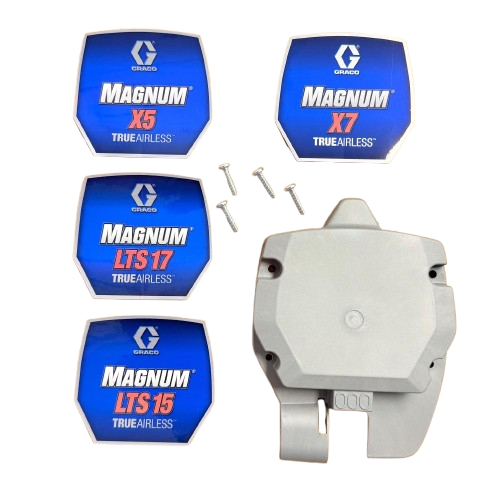

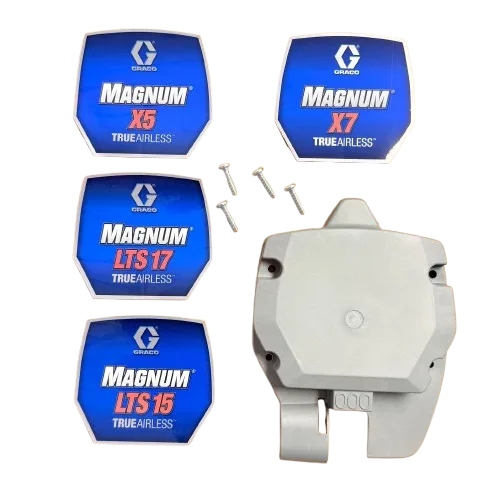

What’s Included
| Ref. | Part No. | Description | Qty. |
|---|---|---|---|
| 16 | 17L085 | Kit, Housing Cover (front/outer cover) | 1 |
| 16a | 120724 | Screw (mounting) | 4 |
| 16b | — | Front label (nameplate/decal) | 1 |
Key Benefits
- OEM Fit & Finish – Designed by Graco for Magnum X5/X7 and LTS 15/17 frames.
- Protects Internals – Shields electronics, wiring, and motor from debris and accidental impact.
- Clean Refresh – Replaces cracked or worn covers for a professional look and proper airflow.
- Quick Install – Includes mounting screws; no modification required.
Installation Tips
- Disconnect power and follow the pressure relief procedure before servicing.
- Transfer any original labels or accessories as needed; install the included front label for a clean finish.
- Use the provided screws and tighten evenly; avoid over-torque to protect the plastic cover bosses.
- After installation, verify unobstructed fan intake/exhaust and proper Prime/Spray valve movement.
Frequently Asked Questions
Yes. The kit includes the housing cover plus four mounting screws (120724) and a front label, as shown in the Magnum parts manuals.
The 17L085 is specified for Magnum X5/LTS 15 and X7/LTS 17 families. Project Painter Plus uses a different front cover kit (verify by model/series in your manual).
Yes, it’s a genuine Graco OEM part for Magnum series sprayers, ensuring proper fit and durability.
Graco diagrams list typical light torque values for panel hardware. Hand-snug the 120724 screws evenly; do not over-tighten to avoid stripping plastic posts.
Check your exact model and series (e.g., X5 vs X7; LTS 15 vs LTS 17) in the parts manual. If your label plate or frame differs, verify before ordering.
