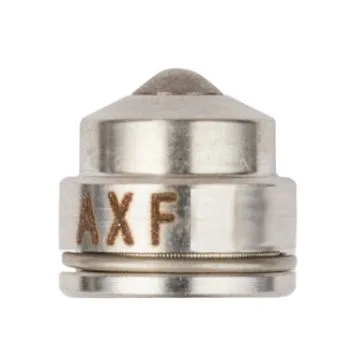

Graco AXF108 Performaa Ff Spray Tip

Graco AXF108 Performaa FF Spray Tip has the following specifications:

• Orifice Size: 0.009 inches (0.229 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 7.0 fl oz/min (0.21 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 8.5 fl oz/min (0.25 L/min)
• Maximum Pattern Width: 2 to 4 inches (100 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is ideal for precise, low-volume applications with a narrow spray pattern, useful for detailed spraying tasks or fine coatings.
