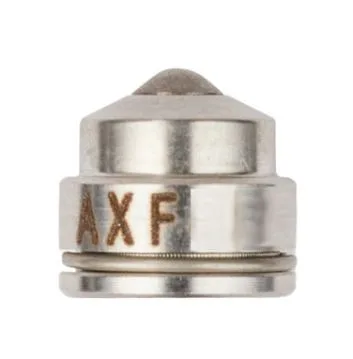

Graco AXF310 Performaa Ff Spray Tip

Graco AXF310 Performaa FF Spray Tip has the following specifications:

• Orifice Size: 0.011 inches (0.279 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 9.5 fl oz/min (0.28 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 12.5 fl oz/min (0.37 L/min)
• Maximum Pattern Width: 6 to 8 inches (200 mm) at 12 inches (305 mm) from the spray tip.

This spray tip provides a slightly higher fluid output compared to the AXF308, with a similar pattern width, making it suitable for applications that require a medium output and a medium-width spray. It is ideal for tasks such as coatings, finishes, and spraying where moderate fluid delivery and spray pattern width are desired.
