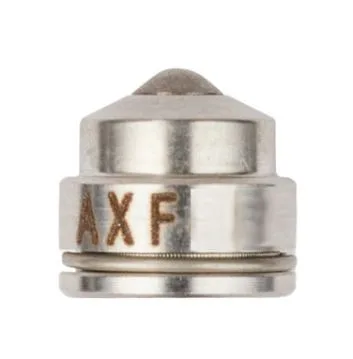

Graco AXF412 Performaa Ff Spray Tip

Graco AXF412 Performaa FF Spray Tip has the following specifications:

• Orifice Size: 0.013 inches (0.330 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 12 fl oz/min (0.35 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 16 fl oz/min (0.47 L/min)
• Maximum Pattern Width: 8 to 10 inches (250 mm) at 12 inches (305 mm) from the spray tip.

This spray tip is well-suited for applications requiring moderate fluid output with a wider spray pattern for efficient coverage. It's particularly effective in applications where a balanced combination of fluid flow and spray width is needed.
