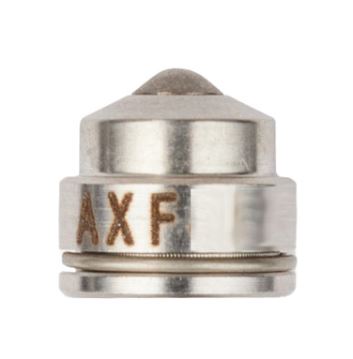

Graco AXF516 Performaa Ff Spray Tip

Graco AXF516 Performaa FF Spray Tip has the following specifications:

• Orifice Size: 0.017 inches (0.432 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 20 fl oz/min (0.59 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 26.5 fl oz/min (0.78 L/min)
• Maximum Pattern Width: 10 to 12 inches (300 mm) at 12 inches (305 mm) from the spray tip.

This spray tip offers a larger fluid output compared to smaller nozzles, making it suitable for applications requiring higher volumes of fluid while maintaining a consistent spray pattern within the 10 to 12-inch width range. Ideal for medium to large-scale projects that demand a higher flow rate and precise coverage.
