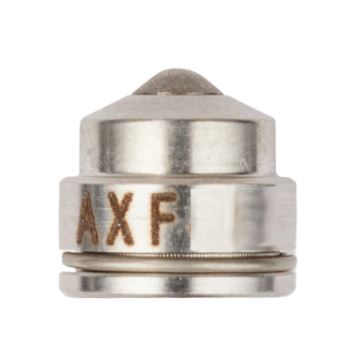

Graco AXF716 Performaa Ff Spray Tip

Graco AXF716 Performaa FF Spray Tip has the following specifications:

• Orifice Size: 0.017 inches (0.432 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 20 fl oz/min (0.59 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 26.5 fl oz/min (0.78 L/min)
• Maximum Pattern Width: 14 to 16 inches (400 mm) at 12 inches (305 mm) from the spray tip.

This spray tip provides a higher fluid output compared to smaller tips, making it suitable for tasks that require greater coverage and more material to be applied. It is optimized for medium to high-pressure systems and is ideal for applications where a broad, uniform pattern is needed.
