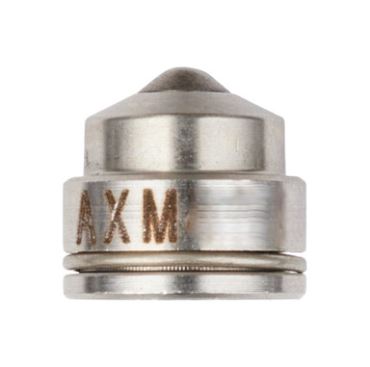

Graco AXM219 Performaa Spray Tip

Graco AXM219 Performaa Spray Tip has the following specifications:

AXM219 Specifications:

• Orifice Size:
  0.019 inches (0.483 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 28 fl oz/min (0.8 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 36.3 fl oz/min (1.09 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  4 to 6 inches (150 mm)

Key Features:

• The orifice size of 0.019 inches (0.483 mm) offers a larger fluid output, suitable for medium to heavy applications that require more fluid flow.
• At 600 psi, the fluid output is 28 fl oz/min (0.8 L/min), and at 1000 psi, it increases to 36.3 fl oz/min (1.09 L/min), providing ample fluid flow for tasks requiring moderate to higher spraying.
• The maximum pattern width at 12 inches is between 4 to 6 inches (150 mm), offering a narrow spray pattern ideal for precise, focused spraying.

Summary:

The AXM219 spray tip is designed for moderate to higher fluid output with a narrow spray pattern (4 to 6 inches). It is ideal for precise spraying in medium to heavy applications, such as coatings, touch-ups, and detailing, where controlled fluid delivery is necessary for consistent results.
