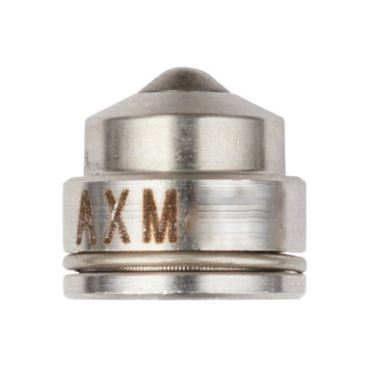

Graco AXM409 Performaa Spray Tip

Graco AXM409 Performaa Spray Tip Key Features:

• The orifice size of 0.009 inches (0.229 mm) offers a small fluid output, suitable for spraying applications that require fine control over the fluid flow.
• At 600 psi, the fluid output is 7.0 fl oz/min (0.2 L/min), and at 1000 psi, it increases to 9.1 fl oz/min (0.27 L/min), providing flexibility for different spray pressures and fluid delivery requirements.
• The maximum pattern width at 12 inches is between 8 to 10 inches (250 mm), providing a wide spray pattern for broader coverage.

Summary:

The AXM409 spray tip is designed for smaller fluid output with a wider spray pattern (8 to 10 inches). It is ideal for precision spraying where fine control over the fluid delivery is needed, but still requires broader coverage. Applications may include fine coatings, touch-ups, and tasks that need moderate coverage with a fine spray.
