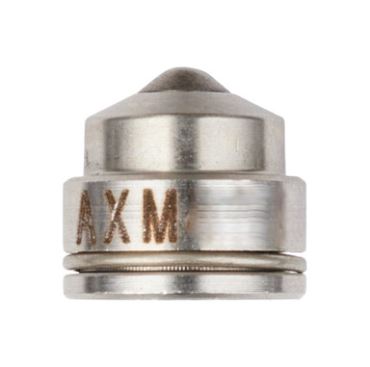

Graco AXM509 Performaa Spray Tip

Graco AXM509 Performaa Spray Tip has the following specifications:

AXM509 Specifications:

• Orifice Size:
  0.009 inches (0.229 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 7 fl oz/min (0.2 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 9.1 fl oz/min (0.27 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  10 to 12 inches (300 mm)

Key Features:

• The orifice size of 0.009 inches (0.229 mm) is relatively small, resulting in a lower fluid output suitable for finer applications.
• At 600 psi, the fluid output is 7 fl oz/min (0.2 L/min), and at 1000 psi, it increases to 9.1 fl oz/min (0.27 L/min).
• The maximum pattern width at 12 inches is between 10 to 12 inches (300 mm), allowing for a wider spray pattern suitable for a variety of applications.

Summary:

The AXM509 spray tip is designed for applications where a moderate fluid output and wide spray pattern (10 to 12 inches) are required. It's ideal for finer coating applications where control and a wide coverage area are needed at relatively lower fluid volumes.
