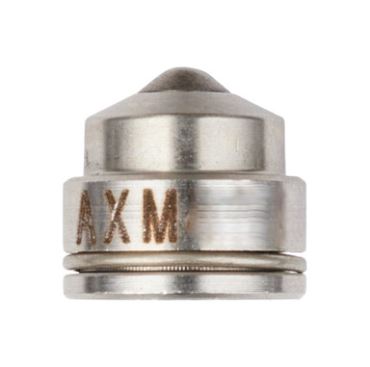

Graco AXM523 Performaa Spray Tip

Graco AXM523 Performaa Spray Tip has the following specifications:

AXM523 Specifications:

• Orifice Size:
  0.023 inches (0.584 mm)

• Fluid Output:

  • At 600 psi (4.1 MPa, 41 bar): 40.0 fl oz/min (1.2 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 51.9 fl oz/min (1.56 L/min)

• Maximum Pattern Width (at 12 inches / 305 mm distance):
  10 to 12 inches (300 mm)

Key Features:

• The orifice size of 0.023 inches (0.584 mm) allows for higher fluid output compared to smaller orifice sizes, making it ideal for larger applications.
• At 600 psi, the fluid output is 40.0 fl oz/min (1.2 L/min), and at 1000 psi, it increases to 51.9 fl oz/min (1.56 L/min), enabling efficient coverage of larger areas.
• The maximum pattern width at 12 inches is 10 to 12 inches (300 mm), providing a wide coverage area.

Summary:

The AXM523 spray tip is designed for medium to large-scale applications, offering a high fluid output and a wide spray pattern. The 0.023-inch orifice size ensures a balance between high volume delivery and adequate coverage, making it suitable for projects requiring higher flow rates and larger surface coverage.
