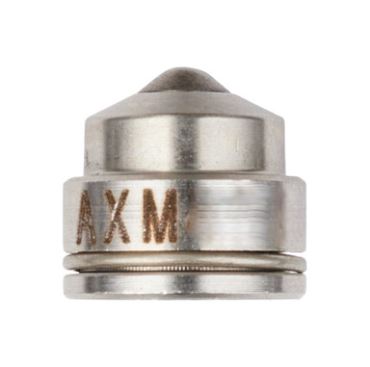

Graco AXM631 Performaa Spray Tip

Graco AXM631 Performaa Spray Tip has the following specifications:

• Orifice Size:

  • 0.031 inches (0.787 mm)

• Fluid Output:

  • 78.0 fl oz/min (2.2 L/min) at 600 psi (4.1 MPa, 41 bar)
  • 101.1 fl oz/min (3.03 L/min) at 1000 psi (7.0 MPa, 70 bar)

• Maximum Pattern Width:

  • 12 to 14 inches (350 mm) at a 12-inch distance (305 mm)

This spray tip is designed for high-volume applications, delivering substantial fluid output with a wide pattern. It's suited for large-scale coating, painting, or other fluid applications, providing efficient coverage for heavy-duty industrial or commercial projects.
