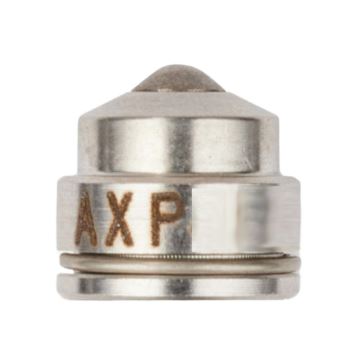

Graco AXP215 Performaa Precision Spray Tip

Graco AXP215 Performaa Precision Spray Tip has the following specifications:

• Orifice Size: 0.015 inches (0.381 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 17.0 fl oz/min (0.5 L/min)
  • At 1000 psi (7.0 MPa, 70 bar): 22.0 fl oz/min (0.7 L/min)
• Maximum Pattern Width: 4 to 6 inches (150 mm) at 12 inches (305 mm) from the spray tip.

This spray tip offers a moderate fluid output and a relatively narrow spray pattern, making it ideal for applications requiring controlled delivery of fluid with a consistent spray width.

Graco AXP215 replaces Graco AAP215
