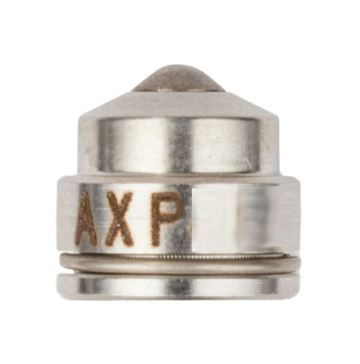

Graco AXP519 Performaa Precision Spray Tip

Graco AXP519 Performaa Precision Spray Tip has the following specifications:

• Orifice Size: 0.019 in (0.483 mm)
• Fluid Output:
  • At 600 psi (4.1 MPa, 41 bar): 28.0 fl oz/min (0.8 lpm)
  • At 1000 psi (7.0 MPa, 70 bar): 36.3 fl oz/min (1.09 lpm)
• Maximum Pattern Width at 12 inches (305 mm): 10 to 12 inches (300 mm)

The AXP519 offers the largest orifice size in the series, allowing for the highest fluid output at both 600 psi and 1000 psi. This makes it ideal for high-volume applications that require significant fluid delivery while maintaining a consistent spray pattern width. It’s well-suited for large-scale coating, painting, or other high-output tasks.

Graco AXP519 replaces Graco AAP519
